    0.05mm Precision PLT 20m/min Channel Letter Bending Machine

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PEL-600A
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, PayPal, Western Union
    Supply Ability : 3000 Unit per Year
    Delivery Time : 5-10 Working Days
    • Product Details
    • Company Profile

    0.05mm Precision PLT 20m/min Channel Letter Bending Machine



    0.05mm Precision Energy Saving Channel Letter Bending Machine

    (PEL-600A)



    Introduction For Aluminum Profile Bending Machine

    Perfect Laser’s new generation aluminum profile bending machine PEL-600A is designed to bend, notch and slot channel letters. It integrates several functions into one machine and enables the users to produce their wanted products. With a moving angle of 90, the aluminum profile bending machine can work flexibly.

    Features For Aluminum Profile Bending Machine

    1.Highly automatic: the aluminum profile bending machine feed the material through a roller system which supports easy and accurate operation.
    2.No waste: Perfect Laser’s aluminum profile bending machine move the shear to the end of the bending process so there is no wasted material.
    3.Trouble free operation: with heavy steel-welded frame and high quality motor, the aluminum profile bending machine function all the time.
    4.With a max width of 110mm and a depth of 0.5mm-1.2mm , the aluminum profile bending machine is intended to handle most of the advertising materials.
    5.The working size of the aluminum profile bending machine PEL-600A is 1850mm * 900mm * 2200mm .

    Application Range For Aluminum Profile Bending Machine

    The aluminum profile bending machine is a fine solution for aluminum materials such as color aluminum plate, single edge, double edge crimping. It is specialized to process boundless words, epoxy resin, unsaturated resin, all kinds of small words.

    Specifications For Aluminum Profile Bending Machine

    Model:

    PEL-600A

    Type

    PC Control Type For All SS, MS, Al materials

    Bending Material:

    Can bend all kinds of Stainless Steel,
    Carbon Steel, Galvanize Plate, Aluminum, etc.....
    Special for bending single-folded-edge and double-folded-edge AL
    And also for 7,9,11cm strip with sponge

    Processed thickness:

    Aluminum: 0.4 - 1.2 mm
    Iron:0.8mm

    Max. processed width:

    30-128mm

    Voltage:

    220V

    Size:

    1740*760*1450 mm

    Weight:

    400KG

    File format

    PLT

    Feed speed:

    5~20 m/ min

    Precision

    0.05 mm

    Remark:

    Computer system and Computer Screen is not included in Price.
    User can use any computer to run our machine

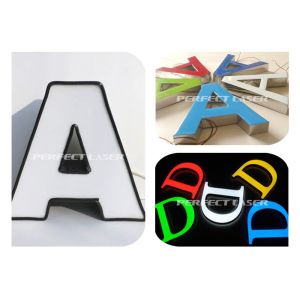

    Sample Show For Aluminum Profile Bending Machine



    Packaging & Delivery

    1. Prompt deliver at the very day.
    2. Sophisticated and professional logistic agent.
    3. Well-trained and disciplined packing team.
    4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

    Competitive Advantages

    1. We offer high quality products at competitive price in quick delivery.
    2. 100% custom pass guaranteed.
    3. Good after-sale service.
    4. Flexible and Untraceable payment terms.
    5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
