Automatic integrated welding single wire / multi-wires copper wire
disk type screening machine
1.Application:
This machine is used for copper wire screening for power cable.
Adopt Portal railed moving type structure; with the function of
moving horizontally and aligning automatically. And the reel is
lifted, clamped and loosen electrically.
This copper wire screening machine adopts separate motor control,
controlled by DANFOSS inverter. The whole line is managed by
SIEMENS PLC and touch screen.
2. Main technical specification:
| 2.1 Max. OD of cable | Φ80mm |
| 2.2 Diameter of copper wire | Φ1.0 ~ Φ2.0mm |
| 2.3 Max. Rotating speed of 36B stranding cage | 60r/min |
| 2.4 Screening pitch | 100~1500mm (Stepless, adjustable) |
| 2.5 Max. rotating speed of non-metallic taping head | 800r/min |
| 2.6 Taping pitch | Step-less, adjustable |
| 2.7 Max. pulling force | 3.2T |
| 2.8 Linear speed | 30m/min |
| 2.9 Stranding cage motor power | 90kW(AC) |
| 2.10 Taping motor power | 15kW(AC) |
| 2.11 Capstan motor power | 18.5kW(AC) |
| 2.12Line central height | 1200mm |
3. Main parts:
3.1 Φ3150 portal type pay-off stand 1 set
3.2 #type wire guiding stand 1 set
3.3 36B stranding cage 1 set
3.4 Wire assembly die holder 1 set
3.5 Non-metallic taping device 1 set
3.6 Mechanical meter counter 1 set
3.7 3.2T flat belt caterpillar 1 set
3.8Φ3150 portal type take-up stand with traversing 1 set
3.9 Electrical control system 1 set
4.Mechanical and electrical components
4.1 Main motors are from SIEMENS.
4.2 All the bearings are from Chinese famous brand.
4.3 All of the low-voltage electric elements are from Schneider.
4.4 PLC is from SIEMENSE
4.5 AC inverter is from SIEMENS.
4.6 Pneumatic elements are from AIRTAC
Note:(The product name of specific parts is mainly based on customer
requirements)

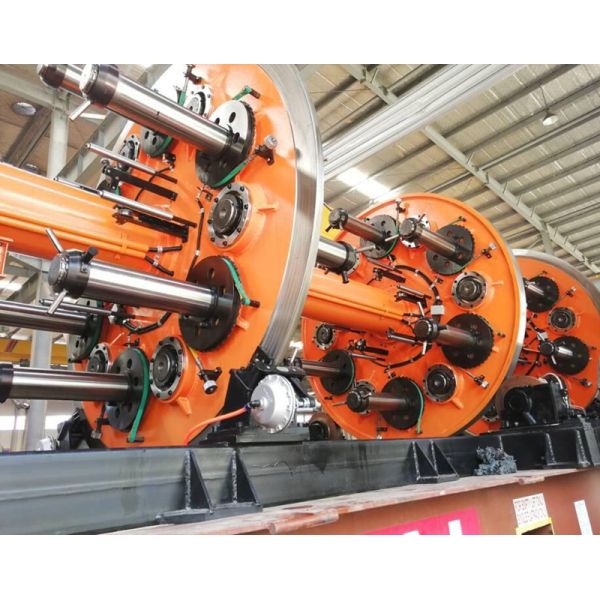

5.Product photos
6.Relevant drawings
7.provide the following drawing and technicial dates
7.1 Line lay-out drawing, transmission system drawing, pneumatic
hydraulic piping diagram, foundation drawing and lubrication chart.
7.2 Electrical schematic design, electrical piping diagram and
external wiring diagram.
7.3 Operation manual, drive mechanism diagram and pitch table.
