Product Description
We manufacture a complete line of vibrating table. We manufacture
Vibrating machine for concrete testing using high quality grade.

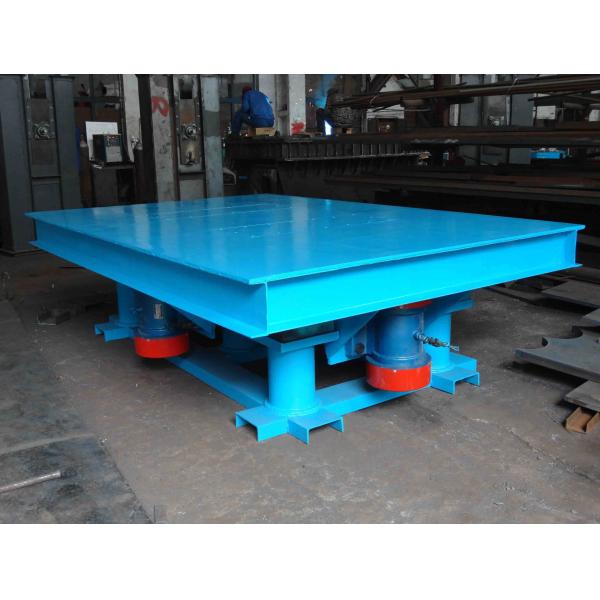

Vibrating Table manufactured by us generally used for compacting
concrete cubes and cylinders. We also provide Vibrating Tables of
table top size 50 cm x 50 cm as well as 100 cm x100 cm on special
demands to our prestigious clients.
Technical parameters:
| Items | Type A:50x50mm | Type A:80x80mm | Type A:1000x1000mm |
| Table size | 500x500mm | 800x800mm | 1000x1000mm |
| vibration frequency | 2860 time/m | 2860 time/m | 2860 time/m |
| amplitude | 0.3-0.6mm | 0.3-0.6mm | 0.3-0.6mm |
| Vibrator power | 0.55Kw | 1.5Kw | 1.5Kw |
| Maximum load | 100Kg | 200Kg | 200Kg |
| Voltage | 220V/380V choice | 220V/380V choice | 220V/380V choice |
Electric vibration table is used to compact the concrete specimens
by vibrating method in the laboratory, field test and so on. It has
the advantages such as high production efficiency, good vibration
efficiency and compaction performance, stable quality, cramped
construction, low noise, easy to operate and convenient to maintain
and repair.
The vibration table have following advantages:
1.Vibration motor as vibration source, low noise, low power
consumption and simple maintenance.
2.Simple structure, work reliable, light weight, small size, easy
to install.
3.High power, large table; It can carry the 8T sand box.
4.Table height is adjustable, It is suitable for production line.
5.Three-dimensional vibration for complex cavity casting.
