42CrMo Steel Mill Pinion Gears And Rotary Kiln Pinion Gear Factory Price

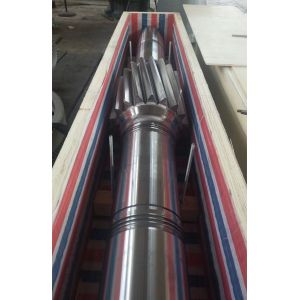

Factory Price Forged Steel 42CrMo Large Module Pinion Gear Shaft

Products Description

ZTIC large cement ball mill parts small pinion gear shaft

Product name	Gear shaft
Material	Carbon steel, Alloy steel
Material Standard	GB, EN, DIN, ASTM, GOST, JIS, ISO
Material Processing	Forging, Casting, Welding
Heat Treatment	Annealing, Normalizing, Q&T, Induction Hardening
Machining Tolerance	Max. 0.01mm
Machining Roughness	Max. Ra 0.4
Module of Gear	8-60
Accuracy of Teeth	Max. ISO Grade 5
Weight/Unit	100kgs - 60 000kgs
Application	Mining, Cement, Construction, Chemical, Oil Drilling, Steel Mill and Power Plant

Small pinion gear

Ball mill parts for small gear offered find extensive application in Sponge Iron Plants that have running capacities of -50TPD, 100TPD, 300TPD, 350TPD, 500TPD. Further, these also provide functionality as integral pinion shaft for cement plants/ball mills and as pinion & pinion assemblies for Phosphate mining plants, Alumina, Kaolin-Bentonite plants and others. Further, we can also custom design these in finish specifications as demanded by the customers. Small gear of ball mill modulus: modulus is refers to between two adjacent gears on the same side of the teeth profile of tooth distance t and of PI ratio (M = t / PI), in millimetres. Modulus is one of the most basic parameters for making gears. The greater the modulus, the higher the tooth thickness, the modulus is based on the design, manufacture and inspection requirements of the development of parameters. GB ball mill small gear modulus of not less than 14, commonly used gear modulus has 18 mode, 20 mode, 22 mode, 24 mode, 25 mode, 26 mode, 28 mode, 30 mode, etc.. The number of teeth and the modulus of the gear are set according to the requirements of mechanical and mechanical principles.

Pinion for: Sponge iron plant-50TPD, 100TPD,300TPD,350TPD,500TPD Integral pinion shaft for cement plant or ball mills Pinion & pinion assemblies for Alumina, kaolin-bentonite plants, phosphate mining plant Main Type of pinion applications as given below for the all above mentioned plants: Kiln Pinion Cooler pinion Pinion shaft Pinion assembled with shaft, bearings, plummer blocks Integral pinion shaft upto 3 mtr total lentgh.

Product Advantage
– Designed for highly efficient motion controls and power transmitting between intersecting shafts at an angle.
– Perfect for projects that require a speed / strength work capacity and the ability to change the angle of power flow.

Mill Pinion Gears

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd: A: 1. More than 30 years experience. 2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts. 3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates. Q:Delivery time A: parts lead time 1-2months, machines 2-3months. Q:Payment terms A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping Q: Quality warranty? A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply. Q: After sales service? A: we can supply technical guide for machines running test and parts maintenance if end user needs.

company show

Mill Pinion Gears

Luoyang Zhongtai Industries Co., Ltd. The company was founded in 1981 and finished joint stock reform in 2005. There are eight subsidiaries and it's an independent legal entity with the qualifications of operating import & export trade.

With a garden-like industrial park and modern standard plant covering 80,000 square meters, ZTIC possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services as a whole. The products comprise all the equipments used in mining, cement, metallurgy, construction as well as the related accessories with high power reducer and large-sized castings & forgings, etc.

ZTIC has acquired ISO 9001:2008 Certification of conformity of Management System Certification, Mine Product Safety Authentication, Recognition for BV Mode Ⅱ Survey Scheme in France, Mining Electrical Equipment KY Certification, etc.
The company has also acquired "Fully Quality Management Achievement Award", "Top 50 Enterprises", "Henan Outstanding Innovative Enterprise” and “The Most Powerful Enterprises of Henan" in 2010.

Quality product performance and good reputation, our products have been exported to mnay countries and regions in the world, including: Russia, Serbia, Australia, Mongolia, Indonesia, Bangladesh and other countries, the products are subject to a great welcome and praise.
