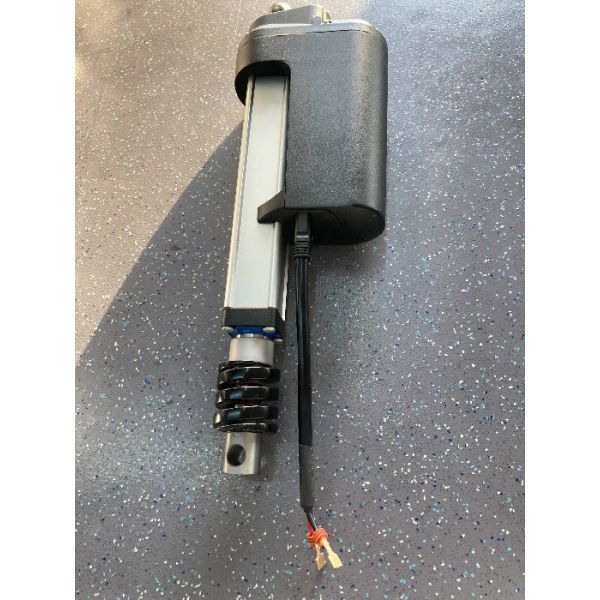

Big force Linear Actuator with precise position function 24volt dc,
300mm stroke, ball screw type actuator
Because of the COVID-19, many governments encourage the Intelligent
Plant, which requires higher precision machines.
Now more and more smart machine manufacturers consider using ball
screw linear actuator because it has higher precision and faster
speeds.
We can customize different strokes of ball screw actuators, also
can do brushless dc motor actuators.
Kindly inform us of your requirements, then we will match the
suitable linear actuator for you.
There are different brands and different models of linear actuators
in the market.
Choose the right one with the goods price, the most important part
is to meet your requirement.
Key Features of high force linear actuator:
- Rugged construction with durable anti-rotation feature
- Rated thrust up to 12000N
- High velocity up to 38mm/sec, Stroke up to 40 inches
The benefits of using the ball screw linear actuator
| - Improves speed, force |
| - Longer and predictable life cycle |
| - Requires less motor power |
| - Greater accuracy |
| - High efficiency (low friction) |
PS:
A ball screw is an improvement over an acme screw with regards to
speed, accuracy, and efficiency.
Precision ball screws have a number of bearing balls that transfer
the load between the nut and screw.
Specification of high force linear actuator
| Model | Ball screw linear actuators |
| Max. stroke | 1000MM |
| Max. Static load | 12000N |
| Max. Dynamic load | 12000N |
| Operation Speed | 6.5 mm/sec/12000N |
| Input Signal | 3.3VDC, 5VDC |
| Position Detection | Hall sensor(s)/ Potentiometer |
| Motor | Brushed DC motor |
| Degree of Protection | IP66 |
| Screw Type | Trapezoidal screw |
| Power Input | 24V/12VDC |
| Self-locking ability | NO |
| Operating temperature | -40℃~65℃ |
| Safety nut | NO |
| Optional 1 | Cable length |
| Optional 2 | Feedback (POT /hall sensor) |
| Optional 3 | Installation size |
L.min means the length when linear actuator 100% fully retracts,
meanwhile,
it will touch the tail limited switch, stop automatically, very
safe.
Stroke means the movement length of linear actuator.
L.max means the length when linear actuator 100% fully extends,
meanwhile,
it will touch the head limited switch, stop automatically, very
safe.
Installation size of linear actuator
50≤Stroke≤300, L=S+200mm
300＜Stroke≤600, L=S+250mm
For example: linear actuator, 250mm stroke, 450mm mounting length
Our production line
Load & Speed of linear actuator
| Product mode | Max load(N) | Speed (mm/s) |
| linear actuator | 12000 | 6.5 |
| 10000 | 13 |
| 7000 | 17 |
| 6500 | 20 |
| 5000 | 25 |
| 3200 | 38 |
Advantages of linear actuator
- Compact size
- High waterproof feature
- Good price
See below pictures of real applications of linear actuator
How can you find the right linear actuator?
When determining a design for your linear actuator, there are
countless factors to take into consideration.
One of the first things you'll need to determine is the viability
of standard linear actuator designs for your project.
If standard can't be made to work efficiently, it's time to start
looking at custom options.
· Size
· Input voltage
· Load speed
· Load capacity in lbs/N
· Environment
· IP rate
· Production
· Material
Our main goal is to satisfy and exceed the expectations of our
clients.
We have the capabilities to meet low and high product volume
requirements.
