Shaft 80mm Material Thickness 1 . 5 - 3 . 5mm C Purlin Roll Forming
Machine
Profile Drawing
Parameter
| Item | Parameters |
| 1 | Type | C80-300 |
| 2 | Thickness | 1.5-3.5mm |
| 3 | Forming Speed | 20m/min |
| 4 | Forming station | 18 steps |
| 5 | Main motor | 18.5KW |
| 6 | Hydraulic Power | 7.5 KW |
| 7 | Weight | about 12 Tons |
| 8 | Housing | H400 |
Main features
The advantages of single size C purlin roll forming machine are as
follows:
1. Produce different purlin size without changing rollers or
spacers
2.No need changing cutter for diferent size;
3.Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range), help to save
material
5. Optional punch hole at any position of purlin web side and
flange side
Decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and
stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option

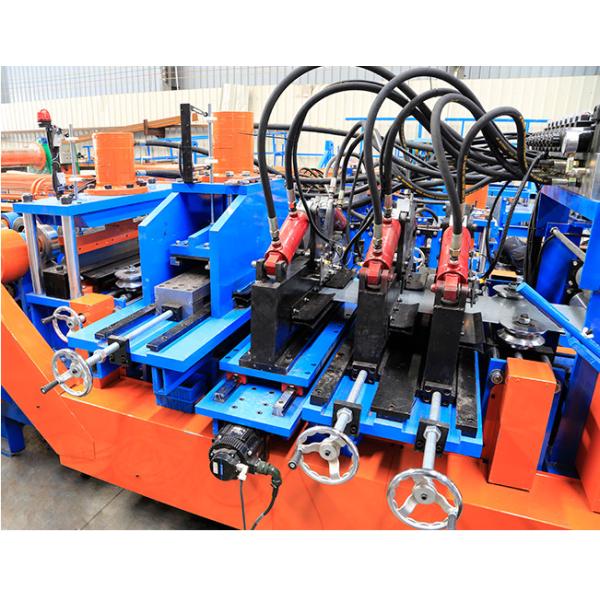

Main Machine
With 3 cylinder(one cylinder for single hole and two cylinders for
dual-holes
Rollers manufactured from high quality bearing steel GCr15, CNC
lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel
by welding
Suitable for material with thickness 1.5-3.5 mm
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision
machined
Motor driving,Gear chain transmission, 18 rollers to form
Main motor=18.5KW , Frequency speed control. Forming speed approx.
20m/min
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
C purlin machine encoder:International brand: Japan koyo / Omron.
Accurate calulating.
Exit Rack
PLC Control System
Control the quantity and cutting length automatically.Input the production date(production batch,Pcs,length,etc.)on the
touch screen.
It can finish the production automaticlly Combined with: Plc.
Inverter. Touch Screen. Encoder. etc
Cut-to-length tolerance≤±2mm
Control Voltage24V
Packing Style
Packing method: Main body of machine is naked and covered by
plastic film(to protect of dust and corrosion),loaded into
container
and steadily fixed in container suitable by steel rope and lock,
suitable for long-distance transportation.
After-sale service
1. The warranty is one year after the client receives the machine
Within two years, we will courier the replacement parts to the
client free of charge.
2. We offer technical support for the entire life of our machine .
3. We can send our technicians to install and train the workers in
the clients factories with extra cost.
Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile,
Bolivia, Trinidad,Israel,Saudi Arabia,etc.
