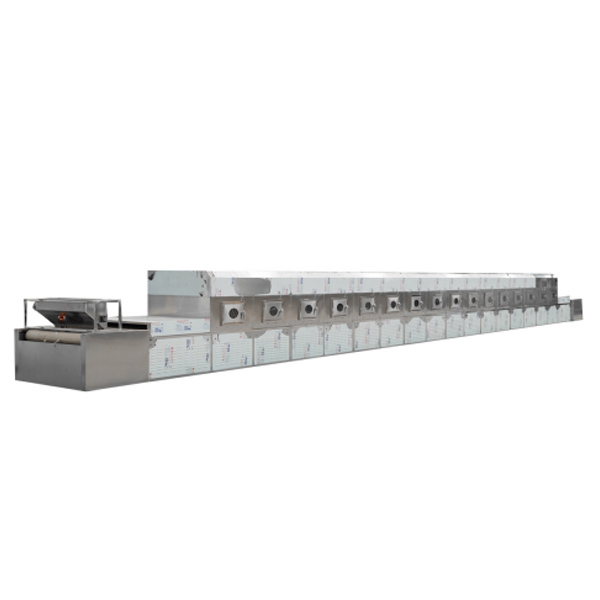

High Efficient Tunnel Microwave Dryer for Food Processing

Equipment Features:
1. The device can operate in two modes: manual and automatic.
2. The equipment can be used continuously for 24 hours without stopping.
3. The box is made of 1.5mm thick 304 stainless steel plate, which is sturdy and durable.
4. Microwave power: ≥ 150kw; installed power: ≤ 200kw.
5. Equipped with a cooling tower for better heat dissipation, and a water circulation low water level ball valve with water replenishment function to protect the equipment.
6. Prevent device misoperation and protect the device.
7. Food grade polytetrafluoroethylene conveyor belt, does not deviate, with side guards installed on both sides to prevent materials from slipping into the box.
8. Digital frequency conversion sealed microwave power supply can save about 20% energy.
9. The equipment and electrical appliances are equipped with voltage stabilizing devices, integrated design, and more durable and stable operation.
10. The equipment structure is reasonable, the heating is uniform, and the drying effect is better, which is about 10% higher in uniformity and practicality compared to domestic manufacturers.
Equipment Overview:
1. Equipment structure transmission system [head/tail], microwave leakage suppressor, microwave heating box, power supply system. Electrical control and detection, heat and moisture removal system.
Material → Microwave Suppressor → Microwave Heating Box → Microwave Suppressor → Discharge → Enter the Next Process
2. The equipment size is approximately 19200 * 1800 * 2200mm.
3. 16 microwave heating boxes.
4. The microwave feeding method is uniform feeding at the top.
5. Suppressor opening height: 60mm.
6. The length of the nose and tail is 1000mm each.
7. The width of the conveyor belt is 1200mm.
8. The distance between the flat surface of the conveyor belt and the ground is 750 ± 50mm (adjustable).
9. The motor is 3.7kw and its speed is adjusted through frequency conversion.
10. The magnetron adopts water cooling method, and each magnetron operates with an input current of 5-7 A
11. The dehumidification pipeline adopts PVC round pipes, which are connected before leaving the factory on the equipment.
12. Working environment: Seasonal normal temperature environment with relative humidity ≤ 85%. There are no corrosive gases or flammable or explosive gases in the surrounding area.
13. Three phase five wire system, with the neutral wire as thick as the phase wire, 380v ± 5%, 50Hz ± 1%.
