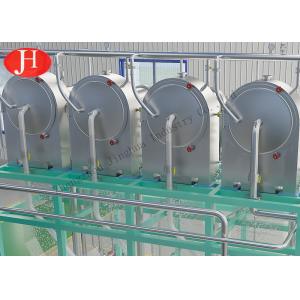

Potato Starch Slurry Fiber Separator Dehydration Machine Centrifuge
Sieve
Introduction of potato starch fiber sieve machine
Centrifugal Sieve is used to separate the fine fiber from the
starch slurry, which is widely used in the processing of potato,
cassava, sweet potato, wheat, rice, sago and other grain starch
extraction.
Advantages of centrifuge sieve
1. Combining the latest technology and years’ experience into a
whole.
2. Key components introduced abroad, lone service life, low
maintenance cost.
3. All parts contact with material are stainless steel, no material
contamination.
4. Sieve basket is calibrated through dynamic equilibrium by
domestic authority body.
5. Advanced surface treatment technology ensuring the good
appearance and resistance of oil and dirt.
6. Nozzles tested by strict examination in pressure and flow rate.
7. Widely used for starch extraction in starch processing factory.
Main technical parameters
Model
| Basket diameter(mm) | Main shaft speed(r/min) | Working model | Power (Kw) | Dimension (mm) | Weight (t) |
| DLS85 | 850 | 1050 | continuous | 18.5/22/30 | 1200x2111x1763 | 1.5 |
| DLS100 | 1000 | 1050 | continuous | 22/30/37 | 1440x2260x1983 | 1.8 |
| DLS120 | 1200 | 960 | continuous | 30/37/45 | 1640x2490x2222 | 2.2 |
The working principle of centrifuge sieve
First, run the machine, let the starch slurry enters the bottom of
the sieve basket. Then, under the effect of centrifugal force and
gravity, the slurry goes a complex curve movement toward the bigger
size direction, even rolling. In the process, the bigger impurities
arrive the outer edge of the sieve basket, collecting in the slag
collection chamber, whist the starch particle which size is smaller
than the mesh fall into the starch powder collection chamber.
Real application case
Our Customer
Our Service
Pre-sale service
1.Introducing detail features and application of the products to
customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of
the machine.
2.Communicating the manufacturing progress of machines with
customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is
functional.
3.One year warranty and providing long-term maintenance service and
spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
