Theodoor Overdoor Air Partition Door Curtain Saving AC Energy
Keeping Door Opening

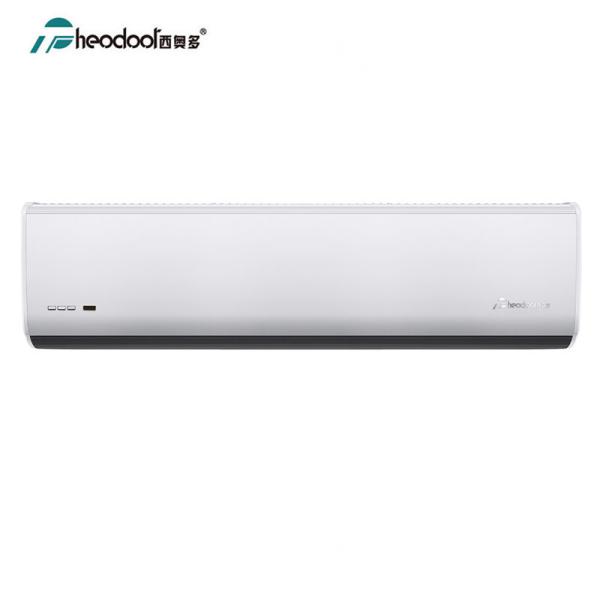

Theodoor S7 Overdoor Air Curtain, Air partition
- A good partner with air conditioner, keep the indoor cool air
more efficiency.
Feature:
Aluminum alloy elegant design
Apply aluminum cover combine with ABS, compact and elegant, light
and durable, never rusty.
Evenly air delivery, high performance

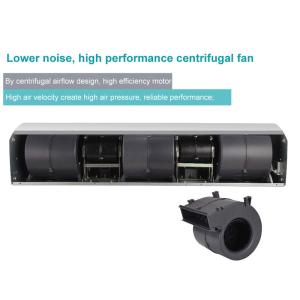

Compact size, powerful performance. Apply centrifugal turbine fans
which produce high air velocity and low noise. New design turbine
fans increase the air volume and air pressure effectively. Combine
with pure copper high performance motor, the product can be running
for 8000 hours continuous.
New workmanship, shock resistance
3N design (new air duct, new turbine fan, and new connection
process of motor), enable the product is shock resistance. Provide
safety and reliability during transportation and long term use.
Easy control, updated configuration
Special air guide plate design, with adjustable air direction
provide thicker air barrier. Available with new remote control and
key switch; with selectable high and lower air velocity.
Specifications:
| Model | Voltage | Input power | Air Volume | Air Speed | Noise | Net W. | Size |
| V/ HZ | (W) | (m3/h) | (m/s) | (db) | (Kg) | (mm) |
| Hi | Low | Hi | Low | Hi | Low | Hi | Lo |
| FM-3209-L/Y | 220/50 | 200 | 170 | 950 | 750 | 14.5 | 11.5 | <51 | <48 | 12 | 900x198 x215 |
| FM-3210-L/Y | 210 | 180 | 1050 | 850 | <51 | <48 | 12.5 | 1000x198 x215 |
| FM-3212-L/Y | 260 | 230 | 1350 | 1050 | <52 | <49 | 14.5 | 1200x198 x215 |
| FM-3215-L/Y | 330 | 300 | 1700 | 1350 | <54 | <52 | 18 | 1500x198 x215 |
| FM-3218-L/Y | 390 | 360 | 2050 | 1600 | <56 | <53 | 21.5 | 1800x198 x215 |
| FM-3220-L/Y | 400 | 400 | 2250 | 1750 | <57 | <55 | 24 | 2000x198 x215 |
Air Curtain functions and introduction:
Theodoor Air curtain is installed above the entryway of store,
restaurant, hotel…etc. It can effectively isolate convection indoor
and outdoor and keep temperature and humidity. Especially used in
the location with air-conditioner to keep indoor environment and
save energy of refrigeration equipment. In addition, Air Curtain
can prevent the invasion of dust, pest and harmful fumes from
outside. In this way, a comfortable indoor climate is maintained.
Commercial use | Supermarket, shopping malls, department store, small store, hotels,
restaurants, hospital,
schools; Movie theaters, fitness halls, clubs, bars, cafes,
barbershop, waiting room,
subway, commercial building, museum entrance and more. |
Industrial use | Factory, workshop, warehouse, spinning mill, frozen goods factory,
paint factory, large
kitchen…etc. |
Competitive Advantage:
Fashion & modern design
Machinery & technology: Advanced mould machines and equipments
ensure products performance and
reliability.
Quality control: 100% product performance testing.
Why choose us:
Experience: More than 18 years manufacture & export experience.
More than 100 models air curtain, suitable for different
environments.
Engineer: Professional R&D and engineer teams focus on Air
curtain.
Machinery & technology: Advanced mould machines and equipments
ensure products performance and reliability.
Materials and Quality: At every stage, from raw materials to the
end products we insist on results: safety, efficiency, energy
conservation and environmental protection, and our rigorous testing
ensure that we reach standards higher than similar products. We
want consumers to depend on the precision and reliability of our
Air Curtain machinery.
Quality control: 100% product performance testing.
Cost saving: We provide long-life and high reliability air curtains
with excellent quality and better performance, resulting in
increased cost saving.
Feedback customers queries promptly: Customers are always given
quick support.
