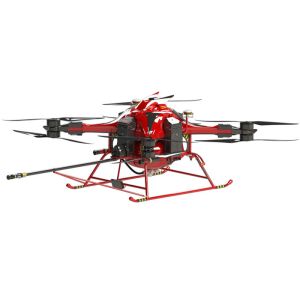

Fire Fighting Drone with Dry Powder System & Detection Function

1. Product Name: Fire Extinguishing Drone/UAV

2. Application: Petroleum and petrochemical sites, urban high-rise buildings, forest field and other emergency rescue and fire fighting situation.

3. Main Advantages:

• Quick response, flexible.
• Free from road and space restrictions.
• 300m climb for 30 seconds.
• 40 seconds single sortie fire extinguishing area 100m3.
• Fire environment is available, reliable and accessible.
• Remote Control of Dangerous Environment.
• Broken Window Bullet can break the windows easily.
• Deliver material quickly.
• Help the people in distress to save themselves quickly.
• Early, small and quick control of initial fire.
• Shock Absorption by Jet and Precision Fire Extinguishing.

4. Detailed Specification
4.1 UAV platform parameters

• Number of rotors ≥ 8, diagonal wheelbase ≤ 1500mm, aviation aluminum fuselage;
• UAV deployment time ≤ 2min, withdrawal time ≤ 2min;
• Surveying and mapping-level navigation and positioning system with RTK and dual antenna direction finding, hovering positioning error ≤0.5m;
• Military-grade three-redundant flight control system, safe and reliable flight all day long;
• Data communication link control distance ≥5km; image video link transmission distance ≥5km, delay ≤300ms;
• Practical ceiling ≥5000 meters; maximum take-off weight ≥60kg, maximum load ≥25kg; no-load endurance ≥30min, 25kg maximum load full-load endurance ≥15min;
• The maximum horizontal speed ≥ 15m/s, the maximum climbing speed ≥ 12m/s, and the maximum descent rate ≥ 5m/s;
• Safe hovering and wind resistance rating ≥ 7; -20°≤ working environment temperature (including battery) ≤ 50°; IP protection grade is higher than IP43; mean interval between failures MTBF ≥ 100.

4.2 Parameters of handheld ground station

• Portable ground station, weight ≤5kg;
• Support all operations of UAV flight and all control of fire fighting and rescue function loads;
• Independent OLED status display, supporting data monitoring of UAV core flight status;
• The 7-inch 1080P high-definition high-brightness wide-temperature LCD screen supports real-time display of UAV reconnaissance video;
• Control distance ≥5km, image distance ≥5km;
• Battery life ≥2h;
• -20°≤Working environment temperature (including battery)≤50°
• IP protection level is higher than IP43
• MTBF≥500 switch

4.3 Fire fighting and rescue system parameters

• Reconnaissance function: carrying 200W pixels, 1080P high-definition camera, 1W power green laser aiming device and digital wireless broadband image transmission system, which can carry out comprehensive on-site reconnaissance;
• Window breaking function: distance of 10 meters, capable of breaking 10mm+10mm, double-layer tempered glass;
• Fire extinguishing function: It can carry effective dry powder or foam water agent ≥15kg, jet forward/downward to extinguish fire, or throw fire extinguishing; it can carry 25-40mm diameter fire hose, and realize height difference by connecting air compressed foam system Below 100 meters, spray foam to extinguish the fire;
• Rescue function: It can carry rescue materials with an effective weight of ≥20kg or carry two 10kg rescue materials at the same time.

5. Reference Pictures

CXFIRE is located in Chengdu of China with an area of 200,000 square meters and 600 staff. The annual output is 1000 units fire fighting vehicles. Through 60 years' development, CXFIRE has become the biggest manufacturer and one-stop solution supplier of fire fighting products in China.

CXFIRE has complete fire fighting products as follows:


1. Fire Trucks: With 144 basic fire trucks' models and more than 400 types of configuration. Different chassis can be selected according to customer's needs, such as Scania, Mercedes-Benz, Man, Vovle, Saic-Iveco Hongyan, Sinotruk, Isuzu, Dongfeng, Foton, Faw etc.


2. Fire Fighting Equipment: Fire extinguishing robot, Fire extinguishing drone, Fire pump, Fire monitor, Fire truck standard components, Rescue tools, Personnel protection equipment etc.


3. Fire Extinguishing System: Gas Extinguishing System, Water Extinguishing System, Foam Extinguishing System, Powder Extinguishing System etc.

CXFIRE exports hundreds of fire trucks every year, and its main markets are Europe, Asia, the Middle East, America, Africa, etc. Its excellent product quality and perfect after-sales service have won a good reputation.

CXFIRE is the first fire protection company in China to pass international certification, and its manufacturing standards could meet the requirement of ISO, CCC, CE, EN, NFPA. As a national high-tech enterprise, now CXFIRE totally owns more than 300 patents including patent of invention, appearance design patents and utility model patents.

With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.
