    5mw 532nm Dot Laser Module With Electric Driver

    Ask Lasest Price
    Brand Name : LB
    Model Number : LB-002
    Certification : CE FDA TUV ROHS
    Price : $0.1pcs-$2 pcs
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000000pcs/month
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    5mw 532nm Dot Laser Module With Electric Driver

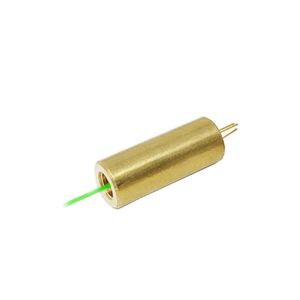

    5mw 532nm green laser module with electric driver


    Laser Module Specification:


    ELECTRICAL AND OPTICAL CHARACTERISTICS
    ParameterSymbol
    Wavelength532nm
    DimensionΦ7.5*22mm
    Weight5.2g
    Operating voltage3.5-5.5V
    Operating current80mA
    Aging time5mins
    Focus lensΦ6F13.15
    Output power5~20mw
    Spot size at output3mm
    Spot size2-3cm@30m
    Spot shapesuborbicular
    Divergence angle(half angle)0.06-0.08°
    Operating temperature-20℃~45℃
    Storage temperature-40℃~+60℃
    MTTF(25℃)>5000h


    Application area: Laser modules can be widely used in various industries. For example: stage projector, laser therapeutic apparatus, laser cosmetic apparatus, laser indicator, laser pen bar code scanner, level instrument, level instrument, level instrument, electric tool, building measurement, burglar alarm system, laser thermometer, industrial detector, processing positioning, military aiming, laser guidance, aviation industry, etc. Experimental laser source, children's toys, etc. Automation design and other industries.
