linear actuator 12v 1000 lb, lift lead screw linear actuator 24
inch stroke
R&D continues at sino linear actuator as we develop smaller,
powerful, stable and more cost-effective linear actuators
for the next generation of automation.
- Over 10 models to choose from
- Stroke lengths from 30mm to 1000mm
- 12V , 24V input options
- We offer both rod actuators and linear actuators
- Forces up to 12000N
- No in-stock, every piece are a customized device
- Phone and email support
- All products have a 1-year warranty
We are a professor company on linear actuators; we have different
linear actuators with different specifications:
- Mute linear actuators
- Heavy-duty linear actuator
- Light duty linear actuator
- High force linear actuators
- Mini Linear Actuator
IP Rating Reference Chart
Below is an easy to follow reference chart to know IP rating you
use now |
| IP Number | First Digit - SOLIDS | Second Digit - LIQUIDS |
| IP43 | Protected from tools and small wires greater than 1 millimeter. | Protected from water spray less than 60 degrees from vertical. |
| IP54 | Protected from limited dust ingress. | Protected from water spray from any direction. |
| IP65 | Protected from total dust ingress. | Protected from low-pressure water jets from any direction. |
| IP66 | Protected from total dust ingress. | Protected from high-pressure water jets from any direction. |
L.min means the length when linear actuator 100% fully retracts,
meanwhile,
it will touch the tail limited switch, stop automatically, very
safe.
Stroke means the movement length of linear actuator.
L.max means the length when linear actuator 100% fully extends,
meanwhile,
it will touch the head limited switch, stop automatically, very
safe.
Installation size of linear actuator
50≤Stroke≤300, L=S+200mm
300＜Stroke≤600, L=S+250mm

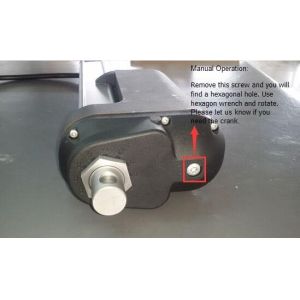

Pictures of lead screw linear actuator
Switch for the lead screw linear actuator
Load & Speed of linear actuator
| Product mode | Max load(N) | Speed (mm/s) |
| linear actuator | 12000 | 6.5 |
| 10000 | 13 |
| 7000 | 17 |
| 6500 | 20 |
| 5000 | 25 |
| 3200 | 38 |
Advantages of linear actuator
- Simple structure
- Low cost
- Safety
- Position feedback.
- Operating process can be automated
- Accuracy
- High-speed operation
- High durability
Applications of Linear actcuator
· Robotic Vehicles
· Automatic Guidance Vehicles
· Camper
· Led car, arrow board trail
· Door Openers
· Floor Cleaning Equipment
· Lawn Mover
· Snow plow
· Boat
· Solar tracker system
· Wheelchairs
· Harvesting machine
· Construction machine
How can you find the right linear actuator?
When determining a design for your linear actuator, there are
countless factors to take into consideration.
One of the first things you'll need to determine is the viability
of standard linear actuator designs for your project.
If standard can't be made to work efficiently, it's time to start
looking at custom options.
· Size
· Input voltage
· Load speed
· Load capacity in lbs/N
· Environment
· IP rate
· Production
· Material
