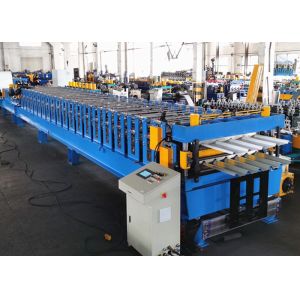

Believe Industry Company has a wide range of roll forming solutions for metal roofing construction. As per customers' different requirements on raw material type, material thickness, material strength and line speed, we have different machine designs. This double layer machine is able to produce 5 rib and 6 rib roofing sheets.

5 Rib 6 Rib Roofing Sheet Profiles

Main Components Included In This Double Layer Rollforming Line

• 8Ton Hydraulic Decoiler With Coil Car
• Double Layer Design Roll Forming Machine
• Auto Stacker
• Control Cabinet
• Hydraulic Station

Workflow: coil uploading - coil unwinding - feeding and guiding - (pre-cutting) - roll forming - cutting - auto stacking

Main Technical Parameters

1. Decoiler type: hydraulic decoiler, hydraulic loosening and tightening, electric unwinding

2. Loading capacity: 8000kgs

3. Pre-cutting device: electrically powered pre-cutting device

4. Roll forming machine structure: high quality H beam steel welded machine base, steel-plate-welded machine support structure

5. Forming steps: 18-28 steps according to final design

6. Material of rollers: high quality No.45 steel with heat treatment and chromed

7. Material of shafts: 40Cr solid shafts, with 75mm inner diameter

8. Drive system: electrically motor drive via chain

9. Main power for roll forming: 11kw

10. Cutting type: hydraulically powered cutting, stop cutting

11. Material of cutting blade: Cr12Mov, HRC58-62

12. Hydraulic power: 5.5kw

13. Runout Table: 6-meter automatic stacker
