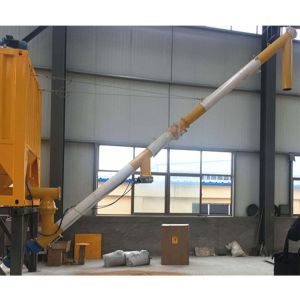

Carbon Steel Inclined Plastic Cement Screw Conveyor Feeder
Cement Screw Conveyor Feeder is a kind of machinery that uses a motor to drive spiral rotation
and push materials to achieve the purpose of conveying. It can be
transported horizontally, inclined or vertically, and has the
advantages of simple structure, small cross-sectional area, good
sealing, convenient operation, easy maintenance.
Carbon Steel Inclined Plastic Cement Screw Conveyor Feeder made of carbon steel with surface finishing and powder coating
.The cement screw conveyor feeder is tubular structure with at
least one inlet and outlet spout,the flange is welded at tube
end,there is a screw flighting welded on a centre pipe with
coupling bush at each end, two end bearing assemblies complete with
self-adjusting shaft seal (one of the bearing assemblies is
integrated into the drive unit), and a number of intermediate
hanger bearings depending on the overall length.
Request for material
-Suitable for non-sticky dry powder materials and small particle
materials. (For example: cement, fly ash, lime, grain, etc.)
Carbon Steel Inclined Plastic Cement Screw Conveyor Feeder
-construction field such as :cement/concrete plant/ silo storage
- other industries, such as food processing, mining, wastewater
treatment industries for conveying bulk, powder or granular
materials. The cement tubular screw convyor achieve durability and
economy of operation.
Screw Conveyor /Tube Screw Auger
1. Large capacity, long conveying distance.
2. Good seal performance, good transportation efficiency
3. Flexible technological arrangement, easy to be installed,
dismantled and moved, safe operation
4. Compact structure, small cross section, light weight
5. Screw conveyor can mixing, heating and colling in the process of
conveying.
Technical Parameters
| Model number | ES 139 | ES 168 | ES 193 | ES 219 | ES 273 | ES 323 |
| Rotating speed(r/min) | 300 | 300 | 260 | 200 | 175/300 | 175 |
| Outer diameter(mm) | 139 | 168 | 193 | 219 | 273 | 323 |
| Max length(m) | 11 | 12 | 13 | 16 | 18 | 18 |
| Incline degree(α°) | 0°~60° | 0°~60° | 0°~60° | 0°~60° | 0°~55° | 0°~55° |
| Conveying capacity(t/h) | 17-9 | 30-20 | 50-32 | 70-53 | 82-60/120-85 | 140-110 |
| Motor | Model | L≤-7 | Y132S-4 | Y132S-4 | Y132M-4 | Y160L-6 | Y180M-4 | Y180M-4 |
| Power(kw) | 5.5 | 5.5 | 7.5 | 11 | 18.5 | 18.5 |
| Model | L>7 | Y132S-4 | Y132M-4 | Y160M-4 | Y180L-6 | Y180L-4 | Y180L-4 |
| Power(kw) | 5.5 | 7.5 | 11 | 15 | 22 | 22 |
Detaile show:
Mainly spare parts:hanger bearing ,motor,universal joint, screw
blade and reducer
Application :
Screw Conveyor /Tube Screw Auger can be used in conveying Sand and cement, food waste, wood chips, aggregates, cereal
grains, animal feed, boiler ash, meat and bone meal, municipal
solid waste, and many others.

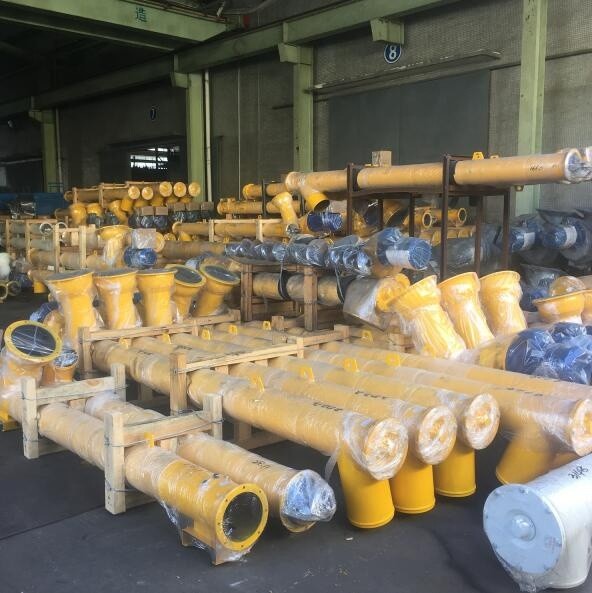

Delivery of Cement Auger Screw Feeder Carbon Steel
