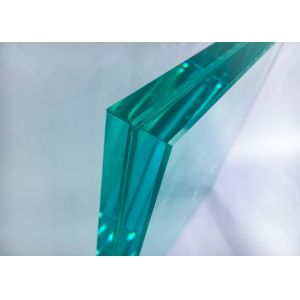

Tempered Sandwiched Laminated Glass Sheets from 3+3mm to 25+25mm
Thickness
Description of Laminated Glass Sheets:
Laminated glass is made from two or more pieces of glass with a
thin PVB / SGP / EVA film between each glass and processed with
high temperature and high pressure. It can be made from high grade
float glass, plated glass, tempered glass and curved glass. It
would not crash into fragments when broken, since they are felt by
the film. It would reduce the harm to people by the glass piece
when the glass was broken, since it's not easily penetrated.
Parameters of Laminated Glass Sheets:
| Product Name | Tempered Sandwiched Laminated Glass Sheets from 3+3mm to 25+25mm
Thickness |
| Raw Material Glass | Clear Glass, Ultra Clear Glass, Bronze Glass, Grey Glass, Blue
Glass, Green Glass |
| Thickness | 3, 4, 5, 6, 8, 10, 15, 19, 25mm |
| Thickness tolerance | T=2~6mm: ±0.2mm T=8~19mm: ±0.3mm |
| Max dimension | 6,000 * 3,000mm |
| Holes or cutout | Drawing or Sketch Needed |
| Lamination | Can be two glasses, three glasses or four glasses laminated |
Laminated Glass Sheets Feature:
1. Sound Control: The sound damping performance of the PVB makes
laminated glass an effective sound control product.
2. Solar Energy Performance: Laminated glass offers unique
combinations of clear or tinted interlayers and solar heat
reflecting coatings which can serve to reduce the harsh effects of
glare and solar radiation to create comfortable conditions for the
occupants of buildings.
3. Ultraviolet Screening: The ultraviolet (UV) filtering
performance of the polyvinyl butyral interlayer helps protect
valuable furnishings, displays or merchandise from the fading
effects of UV radiation.
4. Natural and man-made disasters: Laminated glass can help provide
protection from injury and property damage from man-made or natural
disasters. By keeping the glass intact within the frame, laminated
glass helps reduce injuries from large shards of flying glass
caused by, for example hurricanes, earthquakes or other unusual
loading on the glass.
Application of Laminated Glass Sheets:
1. External use of windows, doors, shop fronts and curtain walls in
offices, houses, shops, high-rise buildings, etc.
2. Interior glass screens, partitions, balustrades, etc.
3. Shop display decorations, lightings, etc.
4. Furniture, table-tops, etc.
Other Products We Offer:
-- Tempered glass, heat strengthened glass, heat soaked glass
-- Smart glass ( or privacy glass, switchable glass ),
self-adhesive PDLC film
-- LOW E glass, laminated glass, insulated glass, vacuum glass
-- Anti-reflection glass, Anti Glare Glass
-- Decorative Glass
-- Silver mirror, copper free mirror, LED mirror
Packaging & Delivery:
- Standard export package: Plywood or wooden crate
- Corner protector and protective film is available
- Crates shall be banded by steel bands
FAQ:
Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help
us calculate costs for you.
-- CIF price is also available if destination port is provided.
Q2: How about sample and freight cost?
-- In general, we provide free samples, customers take freight
cost.
Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity &
order quantity.
Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;
-- To transfer customers requirements to internal product
documents;
-- Complete quality assurance system from IQC to OQC. Outgoing
inspection record is available for each order.
Q5: What about the payment?
-- T/T, L/C, Ali Trade Assurance, Western Union.
Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or
Wechat etc;
-- If urgent case, we will call customers to immediately discuss
and solve.
