ALUMINIUM COMPOSITE PANEL / ACM / ACP www.henanjixiang.com1)Material:
A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF)
with Nano lacquer
B) Core: nontox low density polyethylene
C) Back: aluminium alloy sheet coated with polyester resin painting
D) Surface coating thickness: 32μ±1μ
E) Aluminium alloy: 3003 H24
F) Sheet thickness: 0.3mm,0.4mm,0.5mm
2)Dimensions
A) Thickness: 3mm,4mm,6mm,8mm,10mm
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max)
C) Length: 2440mm,3050mm,3200mm( max:6000mm)
D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness
E) Standard size:1220*2440mm
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm
G) Non-stanard size are available according to requirement
3)Standard:
A) West Europe standard ( Germany DIN Standard);
B) The EAST Europe standard ( Russian standard );
C) The commonweathlth standard (U.K BS Standard );
D) The North America ASTM standard;
4)Features:
A) Light weight,flat surface and high strength
B) Excellent heat insulation ,sound
insulation,fire-resistance,acid-resistance,alkali-resistance,weatherproofness
and non-resonance
C) Various uniform colors
D) Rbright ,elegan and magnificent,fit for various designs
E) Kynar 500 PVDF resin feature strong chemical resistance,unique
colors can be easily maintained
5)Applications:
A) May be widly used in
gallaies,exhibition,saloons,stores,offices,banks,hotels,restaurants
and apartments
B) An ideal decorative materials for buildings
C) An ideal outer and inner walls
D) Kitchen cabinees,billboards,signboards,tunnels,subway,interiors
E) Cellings,eaves,galleries,balconies,partitions,interior
decorations
F) Telephone tooths,vehicle bodies,yachts,industrial usage etc.
Aluminum composite panel /ACP/ACM
6)SkyRainow® ACP compared with different products( Lightness /
Rigidity ):
The composite structure of SkyRainbow® results in an impressive
strength-to-weight ratio, even when comparing large panel sizes.
Despite its low weight, which makes Sky Rainbow ® easy to transport
and handle in the factory and on site, its rigidity and high
strength make the panels keep their shape and remain flat, even
when exposed to extreme temperature changes.
Comparison of thickness and weight of panels with equal rigidity
7)SkyRainow® ACP compared with solid aluminium: Required thickness and actual weights of panels with same rigidity
| | SkyRainow® ACP | Aluminium |
| Rigidity (E J) | Section modulus | Thickness | Weight | Thickness | Weight |
| 1250 kN cm2/m | 1.25 cm3/m | 3 mm | 4.5kg/m2 | 2.7 mm | 7.3kg/m2 |
| 2400 kN cm2/m | 1.75 cm3/m | 4 mm | 5.5kg/m2 | 3.3 mm | 8.9kg/m2 |
8)Skyrainbow ACP Tolerance(mm) :
| Thickness | ± 0.2 |
| Width | ± 2 |
| Length | ± 4 |
| Diagonal | ± 5 |
9)Skyrainbow ACP Physical Properties for Panel:
| Panel density | 5.5kg/m2 |
| Peel Strength | Average 7.0 N/mm |
| Tensile Strength | 52.5 Mpa |
| Flexural Strength | 100.0 Mpa |
| Shear Strength | 28.1 Mpa |
10)Physical properties for aluminium and coating:
| Aluminium alloy | 1100, 3003, 5005 |
| Pencil hardness | 2H |
| Toughness of coating | 2T |
| Elongation | 5% |
| Tensile strength | 130 Mpa |
| Temperature Resistance | -50°C to +90°C |
| Impact Strength | 50kg/cm2 , no change |
| Boiling water resistance | Boiling for 2 hrs, no change |
| Thermal Expansion | 2.4mm/m at 100°C Temp difference |
| Acid Resistance | Immersed in 2% HC1 for 24 hrs, no change |
| Alkali Resistance | Immersed in 2% NaOH for 24 hrs, no change |
| Cleaning Resistance | Cleaned 1000 times with water, no change |
| Oil Resistance | Immersed in 20# engine oil for 24 hrs, no change |
| Solvent Resistance | Cleaned 100 times with dimethylbenzene, no change |
The competitive advantage of product line:
OEM is welcome.

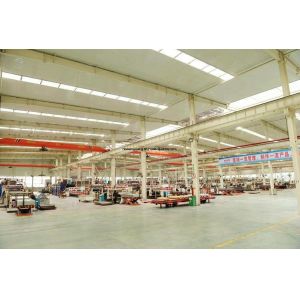

Production Capacity:
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|
| Aluminum Composite Panels | 500,000 Square Meters / Month | |
Export Market Distribution:
| Market | Revenue(Previous Year) | Total Revenue (%) |
|---|
| North America | confidential | 18.0 |
| South America | confidential | 9.0 |
| Southeast Asia | confidential | 9.0 |
| Oceania | confidential | 9.0 |
| Western Europe | confidential | 45.0 |
| Domestic Market | confidential | 10.0 |
Primary Competitive Advantages

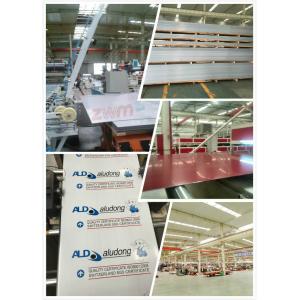

1). 24 ACP production lines, 6 large coating lines, 3 PE film
production lines
2). Big Group organization with 12 subsidiaries
3). Distributorship offered
4). All kinds of preferential terms
5). Deliver goods within 7 working days after prepayment
YOUR QUALITY, OUR HONOR, WELOME TO INQUIRY
Contact:Miss Fiona
Tel No. 0086 13353809672
Site: www.henanjixiang.com
