    OCIMF Natural Rubber Floating Marine Oil Hose With Flange

    Ask Lasest Price
    Brand Name : Jerryborg
    Model Number : STS-H
    Certification : ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 pieces per year
    Delivery Time : 10-20 work days
    Price : negotiable
    • Product Details
    • Company Profile

    OCIMF Natural Rubber Floating Marine Oil Hose With Flange

    OCIMF Certified Marine Floating Oil Hose With Flange For Crude Oil Petroleum


    Marine Floating Oil Hose


    Marine floating oil hoses, which means ship to ship hose is designed for transferring crude oil, petroleum products of cargoes between vessels and oil tankers. Fully compliant with OCIMF standards, our marine floating oil hoses are able to withstand abrasion and bending forces and still perform excellently at low temperatures. Furthermore, the risk of leakage or bulge is absent.


    Marine floating oil hoses mainly consist of inner tube, reinforcement, and cover layer. The cover layer protects the hose body from the damage of the external corrosive environment. Reinforcement is made of high tensile strength fabrics with helix steel wire which makes sure that there won’t be any cracks at a high bending angle. The inner tube is made of synthetic rubber or thermoplastic material that is resistant to oil and fuel.


    Applications of Marine Floating Oil Hose

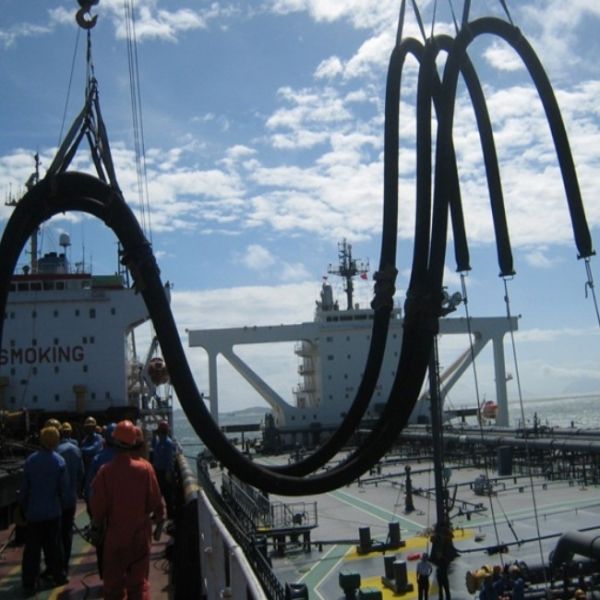

    Marine floating oil hose is widely used in transferring petroleum, crude oil, and vapours between vessels and oil tankers.


    ship to ship oil hose


    Marine Floating Oil Hose Advantages


    Fully compliant with ISO9001, marine floating oil hose is popular with the oil industry due to its excellent performance.

    • Flexible and durable
    • Resistant to abrasion,UV,aging,corrosion,low temperature
    • Prevent water absorption
    • Perform well under high pressure
    • Withstand the crushing and bending force
    • Bear powerful tension and torsion force
    • Easy to install and maintain

    Marine Floating Oil Hose Basic Construction

    1. Inner tube: Synthetic rubber or thermoplastic material (NBR) with features of smooth and resistance to oil and fuel
    2. Reinforcement layer: High tensile polyester fabric with stainless steel helix embedded
    3. Cover layer: CR compound rubber resistant to abrasion, seawater, and sunlight
    4. Body wire: Steel wire
    5. Flange :ASTM A-105 (Max. Carbon 0.25%) , ASME B16.5

    Marine Floating Oil Hose Specifications


    1. Minimum bending radius: 4 × Nominal Diameter

    2. Allowable flow velocity : 21 m/sec (70 ft/sec)

    3. Fluid: Crude Oil, Liquid Petroleum Products


    Here are the dimensions available as below :


    diameterlength
    6"6m (19.7ft)
    8"6m (19.7ft)
    8m (26.2ft)
    10m (32.2ft)
    12m (39.4ft)
    10"8m (26.2ft)
    10m (32.2ft)
    12m (39.4ft)
    12"7.6m (25.0ft)
    9.1m (30.0ft)
    10m (32.2ft)
    12m (39.4ft)

    For further information free to contact us.
