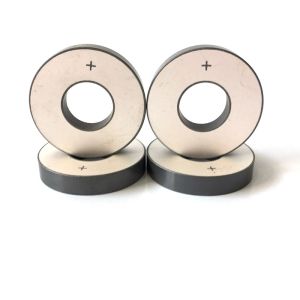

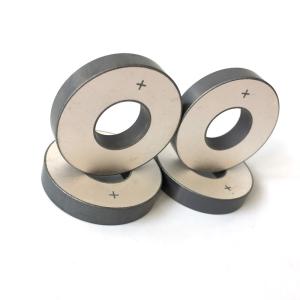

PZT Ceramic Plate 20mm Piezo Transducer Disc 3MHz Piezoelectric Disks

Name: PZT Ceramic Plate 20mm Piezo Transducer Disc 3MHz Piezoelectric Disks
Brand: OURS Ultrasonic
Price: 3 USD

Ask Lasest Price
Brand Name :	OURS Ultrasonic
Model Number :	ARS-TYJP
Certification :	CE AND FCC
Price :	USD3-USD30
Payment Terms :	T/T, Western Union,PAYPAL
Supply Ability :	1000000pcs
Delivery Time :	2-3 days

Add to Cart

Product Details
Company Profile

PZT Ceramic Plate 20mm Piezo Transducer Disc 3MHz Piezoelectric Disks

PZT Ceramic Plate 20Mm Piezo Transducer Disc 3MHz Piezoelectric Disks

The piezoelectric effect of piezoelectric ceramic sheet is due to the spontaneous polarization in the ceramic. After these spontaneous polarizations are forced to be aligned by the polarization process, the residual polarization intensity exists in the ceramics.

If the external action (such as pressure or electric field) can change the polarization intensity, piezoelectric effect will appear in piezoelectric ceramics.

In addition, it can be seen that the polarization charges in piezoelectric ceramics are bound charges, not free charges, which can not move freely. Therefore, the phenomenon of discharge or charge in piezoelectric ceramics is the result of the release or supplement of the free charge on the electrode surface through the change of the polarization intensity in the ceramic.

Specifications	Dimension (mm)	Radial frequency (KHz)	Capacitance (pf)	Dielectric dissipation factor tanδ(%)	Electromechanical coupling coefficient (Kr)	Impedance Zr(Ω)	Thickness frequency (KHz)	Mechanical quality factor (Qm)
ARS-YHJP-25103	Φ25×Φ10×3	66.4	1240±12.5%	≤0.3	≥0.46	≤15	683±5%	800
ARS-YHJP-225104	Φ25×Φ10×4	66.4	930±12.5%	≤0.3	≥0.46	≤15	512±5%	800
ARS-YHJP-40155	Φ40×Φ12×5	45.9	2070±12.5%	≤0.3	≥0.46	≤15	410±5%	800
ARS-YHJP-40155	Φ40×Φ15×5	42.2	1960±12.5%	≤0.3	≥0.46	≤15	323±5%	500
ARS-YHJP-40176	Φ40×Φ17×6	40.5	1555±12.5%	≤0.3	≥0.46	≤15	341±5%	800
ARS-YHJP-40205	Φ40×Φ20×5	37.9	1700±12.5%	≤0.3	≥0.47	≤15	410±5%	800
ARS-YHJP-50206	Φ50×Φ20×6	33.2	2490±12.5%	≤0.3	≥0.46	≤15	341±5%	500
ARS-YHJP-501765	Φ50×Φ17×6.5	34.8	2430±12.5%	≤0.3	≥0.46	≤15	315±5%	800
ARS-YHJP-50236	Φ50×Φ23×6	31.2	2340±12.5%	≤0.3	≥0.47	≤15	341±5%	800
ARS-YHJP-50276	Φ50×Φ27×6	29.3	2100±12.5%	≤0.3	≥0.47	≤15	341±5%	800
ARS-YHJP-603010	Φ60×Φ30×10	25.3	1922±12.5%	≤0.3	≥0.47	≤18	205±5%	800

PZT Ceramic Plate 20Mm Piezo Transducer Disc 3MHz Piezoelectric Disks

PZT Ceramic Plate 20Mm Piezo Transducer Disc 3MHz Piezoelectric Disks
