    ZF transmission 17ton 220HP Grader For Road Construction

    Ask Lasest Price
    Brand Name : NEW SKY
    Model Number : NK200
    Certification : ISO9001
    Price : US$66000-70000/unit
    Payment Terms : L/C, T/T
    Supply Ability : 200units per year
    Delivery Time : 30days
    • Product Details
    • Company Profile

    ZF transmission 17ton 220HP Grader For Road Construction

    Road and bridge construction machinery 220HP motor grader NEWSKY 17ton model NK200

    1.NK200 Features


    • Shangchai SC11CB220G2B1 engine:strong power,low fuel consumption,emission noise in line with national standards
    • With ZF transmission,6F&3R gearshift:High effency,high reliability and long life
    • Split three-stage drive axle,NO-SPIN(anti-slipping) differential with autommatic locking/releasing function
    • REXROTH(Germany) fully-hydraulic braking system
    • Meet ROPS/FOPS international standard,and ensure the safety of drivers
    • Air conditioner,comfortable and wide view



    2.Main specification

    Overall Size(mm)

    9250×2600×3330

    Wheel Track(mm)

    2250

    Max. Traction(kN)

    110

    Blade Cutting Force(kg)

    7800

    Total Weight(kg)

    16500kg

    Front Axle(kg)

    4650kg

    Rear Axle(kg)

    11850kg

    Front Wheel Steering Angle(mm)

    6340

    Middle Wheel to Rear Wheel(mm)

    1550

    Max. Front Wheel Steering Angle(°)

    45

    Max. Articulated Steering Angle(°)

    20

    Min. Turning Radius(mm)

    8100

    Blade:

    Length (mm)

    3962

    Arched Height(mm)

    610

    Max. Tilt Angle(°)

    90

    Rotating Angle (°)

    360

    Cutting Angle Adjusting Range (°)

    30-65

    Max. Lift Above Ground (mm)

    455

    Max. Digging Depth Under Ground(mm)

    495


    3.Product Description

    1. Equipped with Shangchai SC11CB220G2B1 engine, strong power and reliable performance; new water tank radiator structure, large heat dissipation area, good effect and long life
    2. Using electro-hydraulic control power shift gearbox, multiple gear selections, strong and powerful; with torsional shock absorber, weaken the impact of power transmission and improve transmission efficiency
    3. Optimize the swing arm link, the working traction frame and the angle of the blade blade to increase the working range
    4. High front-degree blade, high strength, long service life; blade angle change device adopts welding method, high strength
    5. The lower articulated connection of the front and rear frame adopts tapered roller bearings, and the improved pin positioning makes the connection more reliable.

    6.The cab is grand and nice,with wide eyeshot and good sealing

    7.The front bulldozing plate, rear scarification device are optional kay part choice

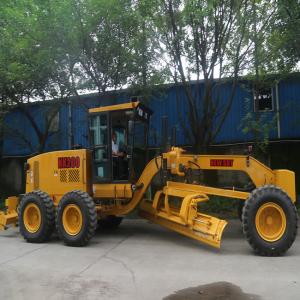

    4.NK200 grader show





    5.NK200 grader working



    6.NK200 Grader optional devices:Scarifier & Moldboard



    7.NEWSKY exhibition
