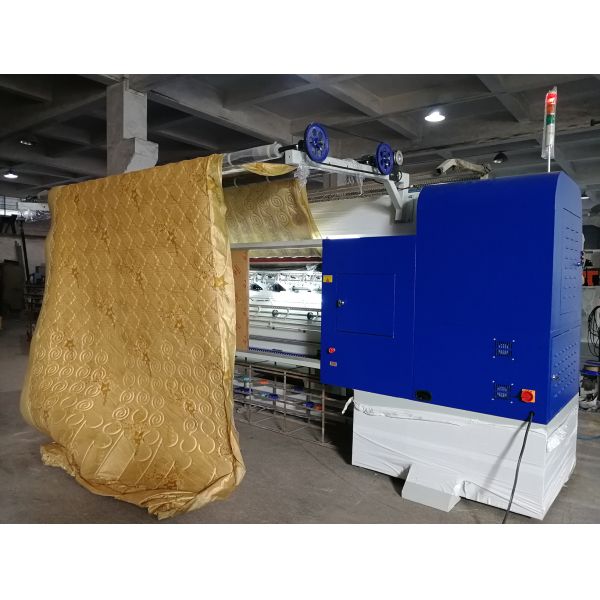

High Efficiency Multi Needle Quilting Machine For Mattress 1200RPM
Speed 2.4M Width
Strength of multi needle quilting machine for mattress
1. Machines servo motors and drives are from Japan, main motor
adopt servo motor instead of frequency converter.
2. Multi-span and independent quilting with pattern compensation
function.
3. Computer can be in store 1000 patterns with about 200 patterns
already existing,and have pattern editing function.
4. new upgrade computer system to help machine work more stable,
speed faster.
5. High rigidy machine body, low noise, easy operation.
Application:
It is widely used for quilting high-quality mattresses, quilt
covers, and household ornaments. Different patterns are available.
Specification:
| Product Name | Computer High speed Non-shuttle (chain stitch) Multi-needle
Quilting Machine |
| Model | YXN-94-3D(3"+3") |
| Size(L*W*H) | 500cm*165cm*200cm |
| Weight | 6500kg |
| Width of quilting | 245cm |
| Distance between needle row | 152.4(3"+3") |
| Quilting thickness Max. | 8cm |
| Rolling speed | 600r/min-1200 r/min |
| Recommend needle model | #21-#24 |
| X-axis movement | 41cm |
| Distance between needles | 1 inch |
| Stitch | 2mm-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Total power | 7500 Watts |
Function:
1. Adopt the advanced process design.
2. Needle bar and pressing block take the double rocker avoid the
materials be soiled by lube.
3. High rigidity machine body, perfect protecting equipment and
steady-going control system.
4. X,Y motors are driven by servo system, and principal axis takes
frequency ports system.
5. Test the working state of all sensors and computer in real time.
6. Auto-stop system when the bottom or upper thread broke by
infrared. Auto lift needle and adjust the speed by computer.
7. Auto faults tips for servo motor system and transducer ,which is
convenient to eliminate problems.
8. 360° quilting and limitless multi-span and independent quilting.
(can do tack and jump patterns)
9. Steady running ,high speed, low noise, very thick material with
precise quilting.
10. Ringing notice when start machine.
Pattern show
