AISI 304, 304L, 316, 316L. Stainless Steel Mesh And Processed
Filter Products
Description:

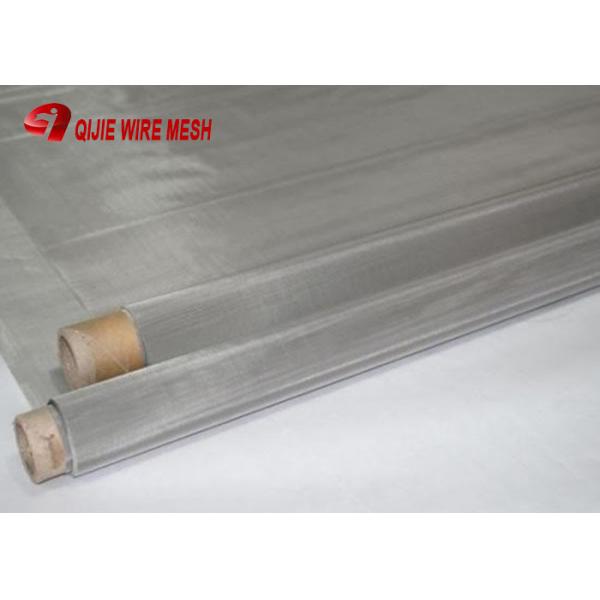

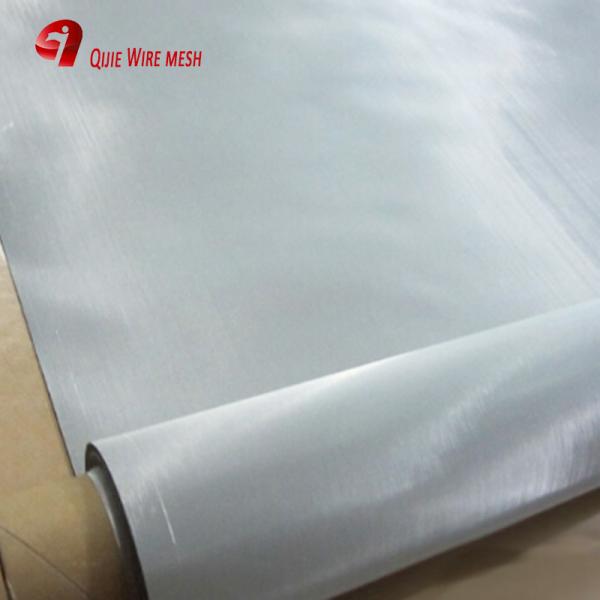

Stainless steel slip mesh could be produced as finished products.
we can produce high and stable quality stainless steel strip mesh
as per customer's requirement. Customzied size should be known as
mesh size, wire thickness, strip width& length, packing etc.
Material: SS304, SS314L, SS316, SS316L,
Applications:
Stainless steel strip mesh products are good at suitable for
various of adaptation, including medical equipment, food industry,
construction material, kitchenware, electric equipment.
Other applications are as following:
- Automotive exhausts, manifolds and high temperature engine
components
- Medical instruments and devices
- Petro-chemical applications
Material: SS 302, SS 304, SS 304L, SS 316, SS316L, etc.
Size: The below is our general size, we can produce according to
customers' size requirements.
Diameter: 0.1-0.25mm
Mesh: 14-24 mesh
Width: 0.3-2m
Length: 15-50m
Packaging: Plastic inside, then carton box, then pallet or wooden box. The
packaing is suitable for exporting transport.
| Specification list of Stainless Steel Wire Mesh |
| Meshes Per Linear Inch | Diameter of Wire | Width of Opening | Open
Area, % |
| Inches | mm | Inches | mm |
| 10 x 10 | 0.047 | 1.2 | 0.053 | 1.34 | 28.1 |
| 10 x 10 | 0.035 | 0.9 | 0.065 | 1.65 | 42.3 |
| 10 x 10 | 0.032 | 0.8 | 0.068 | 1.27 | 46.2 |
| 10 x 10 | 0.025 | 0.63 | 0.075 | 1.90 | 56.3 |
| 12 x 12 | 0.041 | 1.0 | 0.042 | 1.06 | 25.4 |
| 12 x 12 | 0.035 | 0.9 | 0.048 | 1.22 | 33.2 |
| 12 x 12 | 0.032 | 0.8 | 0.051 | 1.29 | 37.5 |
| 12 x 12 | 0.028 | 0.7 | 0.055 | 1.39 | 43.6 |
| 12 x 12 | 0.023 | 0.58 | 0.060 | 1.52 | 51.8 |
| 14 x 14 | 0.032 | 0.8 | 0.039 | 1.52 | 29.8 |
| 14 x 14 | 0.025 | 0.63 | 0.046 | 0.99 | 41.5 |
| 14 x 14 | 0.023 | 0.58 | 0.048 | 1.22 | 45.2 |
| 14 x 14 | 0.020 | 0.5 | 0.051 | 1.30 | 51.0 |
| 16 x 16 | 0.028 | 0.7 | 0.035 | 0.89 | 30.5 |
| 16 x 16 | 0.023 | 0.58 | 0.040 | 1.01 | 39.9 |
| 16 x 16 | 0.018 | 0.45 | 0.045 | 1.14 | 50.7 |
| 18 x 18 | 0.020 | 0.5 | 0.036 | 0.91 | 41.1 |
| 18 x 18 | 0.018 | 0.45 | 0.038 | 0.96 | 48.3 |
| 20 x 20 | 0.023 | 0.58 | 0.027 | 0.68 | 29.2 |
| 20 x 20 | 0.020 | 0.5 | 0.030 | 0.76 | 36.0 |
| 20 x 20 | 0.018 | 0.45 | 0.032 | 0.81 | 41.0 |
| 20 x 20 | 0.016 | 0.40 | 0.034 | 0.86 | 46.2 |
| 24 x 24 | 0.014 | 0.35 | 0.028 | 0.71 | 44.2 |
| 28 x 28 | 0.010 | 0.25 | 0.026 | 0.66 | 51.8 |
| 30 x 30 | 0.013 | 0.33 | 0.020 | 0.50 | 37.1 |
| 30 x 30 | 0.012 | 0.30 | 0.021 | 0.53 | 40.8 |
| 35 x 35 | 0.012 | 0.30 | 0.017' | 0.43 | 33.8 |
| 35 x 35 | 0.010 | 0.25 | 0.019 | 0.48 | 42.4 |
| 40 x 40 | 0.014 | 0.35 | 0.011 | 0.28 | 19.3 |
| 40 x 40 | 0.012 | 0.30 | 0.013 | 0.33 | 27.4 |
| 40 x 40 | 0.010 | 0.25 | 0.015 | 0.38 | 36.0 |
| 40 x 40 | 0.0095 | 0.24 | 0.016 | 0.40 | 38.4 |
| 50 x 50 | 0.009 | 0.23 | 0.011 | 0.28 | 30.3 |
| 60 x 60 | 0.0075 | 0.19 | 0.009 | 0.22 | 30.5 |
| 70 x 70 | 0.0065 | 0.17 | 0.008 | 0.20 | 29.8 |
| 80 x 80 | 0.0070 | 0.18 | 0.006 | 0.15 | 19.4 |
| 80 x 80 | 0.0055 | 0.14 | 0.007 | 0.17 | 31.4 |
| 90 x 90 | 0.0055 | 0.14 | 0.006 | 0.15 | 25.4 |
| 100 x 100 | 0.0045 | 0.11 | 0.006 | 0.15 | 30.3 |
| 120 x 120 | 0.0040 | 0.10 | 0.0043 | 0.11 | 26.6 |
| 120 x 120 | 0.0037 | 0.09 | 0.005 | 0.12 | 30.7 |
| 150 x 150 | 0.0026 | 0.066 | 0.0041 | 0.10 | 37.4 |
| 165 x 165 | 0.0019 | 0.048 | 0.0041 | 0.10 | 44.0 |
| 180 x 180 | 0.0023 | 0.058 | 0.0032 | 0.08 | 33.5 |
| 180 x 180 | 0.0020 | 0.050 | 0.0035 | 0.09 | 41.1 |
| 200 x 200 | 0.0020 | 0.050 | 0.003 | 0.076 | 36.0 |
| 200 x 200 | 0.0016 | 0.040 | 0.0035 | 0.089 | 46.0 |
| 220 x 220 | 0.0019 | 0.048 | 0.0026 | 0.066 | 33.0 |
| 230 x 230 | 0.0014 | 0.035 | 0.0028 | 0.071 | 46.0 |
| 250 x 250 | 0.0016 | 0.040 | 0.0024 | 0.061 | 36.0 |
| 270 x 270 | 0.0014 | 0.040 | 0.0022 | 0.055 | 38.0 |
| 300 x 300 | 0.0012 | 0.030 | 0.0021 | 0.053 | 40.1 |
| 325 x 325 | 0.0014 | 0.040 | 0.0017 | 0.043 | 30.0 |
| 325 x 325 | 0.0011 | 0.028 | 0.0020 | 0.050 | 42.0 |
| 400 x 400 | 0.0010 | 0.025 | 0.0015 | 0.038 | 36.0 |
| 500 x 500 | 0.0010 | 0.025 | 0.0011 | 0.028 | 25.0 |
| 635 x 635 | 0.0009 | 0.022 | 0.0006 | 0.015 | 14.5 |
