    IEC 60502-2 33KV U/G XLPE Insulation Armoured Copper Cable

    Ask Lasest Price
    Model Number : YJLV22-12-20KV 3 core
    Brand Name : SHANCABLE
    Certification : ISO,CE,IEC,TUV,KEMA
    Price : Negotiable
    Delivery Time : 10 Days
    Payment Terms : L/C, T/T
    Supply Ability : 100KM/Week
    • Product Details
    • Company Profile

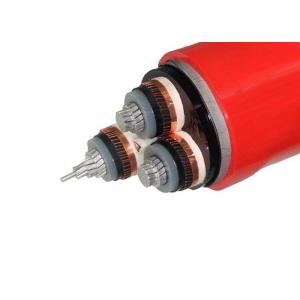

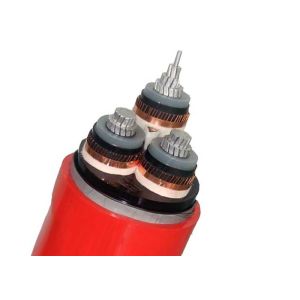

    IEC 60502-2 33KV U/G XLPE Insulation Armoured Copper Cable

    Underground Power Plant XLPE Insulated Steel Tape Armored Power Cable 3Cx120SQMM

    Construction
    Conductor : Compact Stranded Aluminum Conductor class2
    Conductor Screen: Semi-conductor
    Insulation : XLPE insulation
    Insulation Screen: Semi-conductor
    Screen : Copper tape
    Inner sheath :PVC
    Armored :Double Steel Tape
    Sheath : PVC or Flame-retardant

    Applications
    The medium voltage cable can be choosed for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

    Standards
    International: IEC 60502-2, IEC 60228, ASTM,BS,JS,AS
    Cable Type: YJLV22-12/20KV 3Cx120SQMM
    Other standards such as BS,DIN and ICEA upon request

    Technical data
    Rated voltage: 12/2KV
    Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
    Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
    Min. Bending Radius: 12 x cable O.D for multi core

    Certificates
    CE, RoHS, KEMA and more others at request


    Commercial Items: FOB Shanghai Port or CIF port as per request. MOQ: 800m
    Payment terms: 30% T/T before production, 70% T/T before delivery
    Packing: Wooden Iron drum, whole steel wooden drum if required by client side.


    Specifications

    Nom. Cross-section of conductorStrands No./Dia. Of ConductorInsulation ThicknessInner sheathSteel Tape ThicknessSheath ThicknessApprox. O.D.

    Approx.
    Weight

    Max. D.C Resistance of Copper Conductor (20 ℃)Testing Voltage A.CCurrent Rating
    mm2pc/mmmmmmmmmm(mm)kg/kmΩ /kmkV/5minIn air (A)In soil(A)
    3 × 5010/2.525.51.82x0.53.061.042820.64130.5150165
    3 × 7014/2.525.51.82x0.53.165.048770.44330.5190200
    3 × 9519/2.525.52.02x0.53.268.055240.32030.5230240
    3 × 12024/2.525.52.02x0.53.371.060540.25330.5370275
    3 × 15030/2.525.52.22x0.53.475.067910.20630.5310310
    3 × 18537/2.525.52.22x0.53.57874750.16430.5360355
    3 × 24048/2.525.52.22x0.83.783.092470.12530.5430410
    3 × 30061/2.525.52.22x0.83.988.0102900.10030.5495465
    3 × 40061/2.975.52.32x0.84.195.0118580.077830.5590535
