Energy Saving Industrial Rotary Dryer For Sand Cement Gypsum

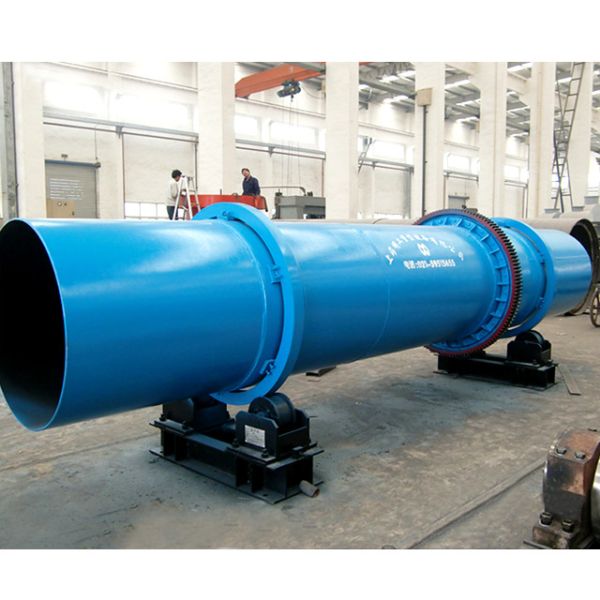

Rotary dryer is also called rotary drying machine. The main body is
revolving cylinder with a small slope. It is composed of the
revolving body, lifting board, driving device, supporting device,
and seal rings etc, with the characteristics of reasonable
structure, perfect in workmanship, high output, low energy
consumption, and convenient operation. Our company can guarantees
the quality of products, credibility first, make the free
installation and debugging, do the agency for consignment, and
complete by quality, service, and price with other factories. At
present, it is still widely used in metallurgical, building
materials, and chemical industry.
Specifications
1. Environment friendly
2. Great adaptability
3. Large capacity
4. Simple structure,etc.
Zhongke rotary kiln dryer
It is used for drying materials with humidity or granularity in the
industries of mineral dressing, building material, metallurgy and
chemical. Rotating dryer can be used for drying many kinds of
materials and with convenient and reliable operation; Therefore, it
has been widely used.
Modal
| Technical parameter | Power(kw) | Capacity
(t/h) | Weight
(kg) |
Inside
dia.(m) | Length
(m) | Gradient
(%) | Rotate speed(r/min) |
| ZT-1.2*6/8 | 1.2 | 6/8 | 5 | 5.8 | 5.5 | 8-12 | 9380/10200 |
| ZT-1.5*12/15 | 1.5 | 12/15 | 5 | 4.8 | 15 | 12-16 | 16450/18240 |
| ZT-1.8*12/14 | 1.8 | 12/14 | 5 | 4.5 | 18.5 | 18-20 | 20000/21000 |
| ZT-2.2*12/14 | 2.2 | 12/14 | 5 | 4.3 | 22 | 22-28 | 37100/38830 |
| ZT-2.4*14 | 2.4 | 14 | 4 | 3.78 | 30 | 30-35 | 50700 |
| ZT-2.4*18 | 2.4 | 18 | 4 | 3.0 | 37 | 35-40 | 54000 |
| ZT-2.4*22 | 2.4 | 22 | 3 | 3.0 | 45 | 38-42 | 57000 |
| ZT-.2.8*20 | 2.8 | 20 | 4 | 3.7 | 40 | 45-55 | 71000/75000 |
| ZT-3.0*22/25 | 3.0 | 22/25 | 4 | 3.2 | 75 | 58-70 | 88000/95000 |
| ZT-3.2*25 | 3.2 | 25 | 4 | 3.0 | 110 | 75-90 | 166000 |
| ZT-3.6*25 | 3.6
| 25 | 4 | 2.7 | 132 | 95-110 | 188000 |
Technical parameters:
| model | cylinder diameter | cylinder length | inclination | Rotate speed/RMP | weight | power | Volume/CBM |
| φ0.6×8 | φ600 | 8m | 3-5 | 8 | 5.1 | 6-pole 4 | 2.26 |
| φ0.8×10 | φ800 | 10m | 3-5 | 7.2 | 6.9 | 6-pole 4 | 5.02 |
| φ1.0×10 | φ1000 | 10m | 3-5 | 6.73 | 7.5 | 6-pole 5.5 | 7.85 |
| φ1.2×12 | φ1200 | 12m | 3-5 | 5.8 | 13.1 | 6-pole 11 | 13.31 |
| φ1.5×12 | φ1500 | 12m | 3-5 | 4.8 | 22.3 | 6-pole 15 | 21.2 |
| φ2.2×14 | φ2200 | 14m | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
| φ2.4×18 | φ2400 | 18m | 3-5 | 3 | 73.3 | 37 | 81.43 |
| φ2.8×24 | φ2800 | 24m | 3-5 | 2.59 | 97 | 75 | 147.8 |
Scope of Application:
- food industry: Glucose, salt, granulated sugar, vitamin malted
milk, Granular sugar
- minerals: Bentonite, Titanium concentrate, coal, manganese ore,
pyrite, limestone, peat
- chemical industry: ammonium sulfate, sodium sulphide, ammophos,
ammonium nitrate, carbamide, oxalic acid, potassium dichromate,
PVC, nitrophosphate fertilizer, calcium magnesium phosphate,
compound fertilizer
- Others: Iron powder, flat soybean, garbage abrasive, match sticks,
wood chips, vinasse
