Good Quality Tobacco Grinders Weed Herb With Long Service Life

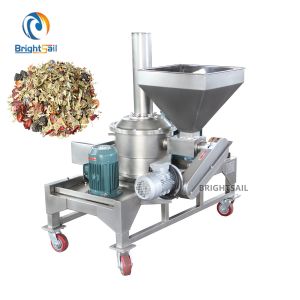

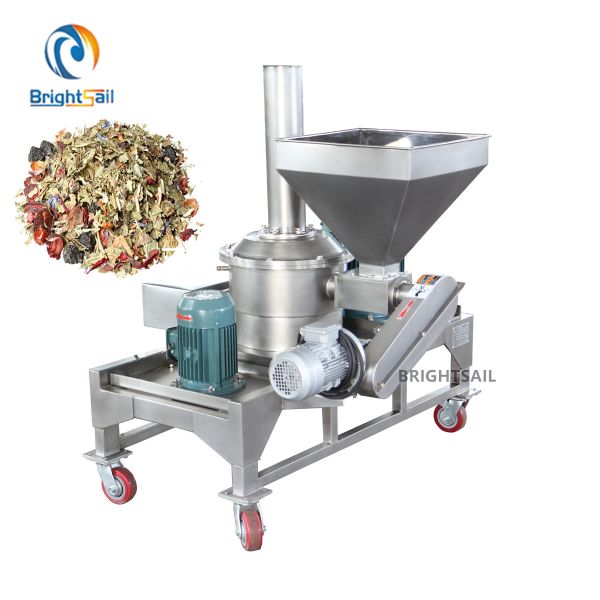

BSP decorative herb grinders is composed of crusher, cyclone separator, dust collector, fan,
electrical control box, etc. It has the functions of winnowing, no
clean, uniform particle size and continuous processing. In line
with the international advanced level, it is suitable for grinding
materials in pharmaceutical, chemical and food industries.
Working Method:
The raw materials are transported to the crushing chamber through
the hopper, the screw feeder to cut and reduce the high-speed
cutting machine, and then the raw materials are sent to the cyclone
separator and the bag filter to discharge the materials by the
negative pressure suction method to meet the product demand. This
is why the BSP grinder weed herb can make ultra-fine powder and be used as a fine powder grinder.
Main Components:
1. Pulse dust collector: the dust in the dust collector. A
plurality of dust bags are arranged on the box body, and the dust
bag bracket is also made of stainless steel, which is easy to
disassemble. Pulse spray cleaning, dust removal is very convenient.
2. Crusher part: the left motor is the crusher motor, and the right
motor is the electromechanical equipment. Small screw feeder is
adopted to ensure the uniform and controllable feeding speed.
3. The material enters the grinding cavity through the screw
conveyor, and is cut and grinded by the fast rotating blade in the
grinding cavity. The powder enters the grading chamber through the
guide ring.
4. Cyclone separator: cyclone separator can separate dust and
powder (particles). The rotary valve is made of stainless steel
with uniform powder speed. Easy to clean and disassemble.
Main Features:
(1) simple structure, easy to install and maintain.
(2) there is a water-cooled sleeve around the grinding room and the
bearings are used to cool the machine. Motors, electrical
appliances, bearings and operating parts are world-class brands.
(3) there is no dust in the production process, the dust can be
collected in the dust collecting box.
(4) the grain size can be changed without changing the screen
speed.
Drawing:
Technical Data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Our Company:
Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin
Brightsail Machinery Co.,Ltd and Jiangyin Heng Sheng Steel
Structure Co.Ltd which is established in 2002.
We provide professional powder processing overall
solution,grinder,mixer,sifter,welding service,welding
machine,chemical powder...etc.
We have sent our products to more than 40 countries around the
world for now.Brightsail is constantly committed to develop new
advanced techniques and methods on the machines,since our goal is
to be your trusted provider of creative and value added process
solutions.
