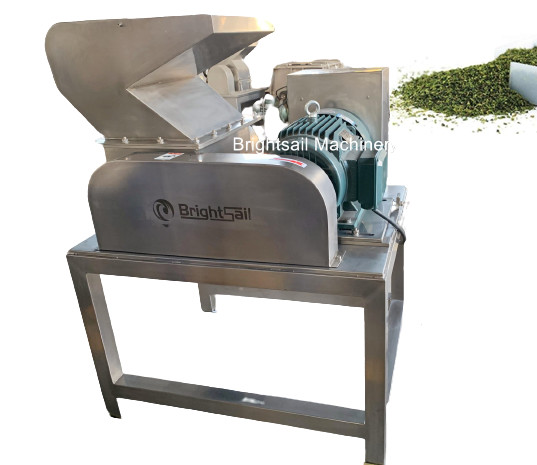

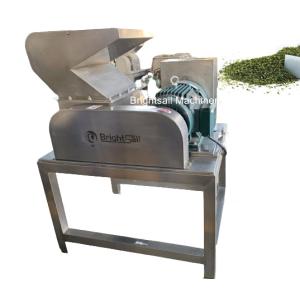

Convenient Operation Tea Leaf Crushing Machine With Long Service
Life
BSC tea crushing machine is widely used in pharmaceutical, chemical, food and other
industries for crushing dry and fragile materials.Materials with
low softening point and high viscosity are not suitable for this
machine.
Our BSC granulation machine is suitable for granulation or primary grinding (making large
materials into small particles), such as pepper flakes, ginger
granules, arabic gum, dried flower flakes, etc. There are two types for you to choose, one is vertical (discharge
opening is behind the machine), and the other is desktop (discharge
opening is below the machine).
Working Method:
This tea leaves crusher is a horizontal grinding machine used to cut large pieces of
material into small pieces. There is a counter wheel at the shaft
end, which will not be blocked during operation. The raw materials
are injected into the hopper, and the fixed rotating blade is
crushed and cut in the crushing cavity. Through the rotating
centrifugal force, the material automatically flows to the outlet.
The size of the final product is controlled by the screen. The
blade is made of durable alloy steel.
Main Features:
1) Simple structure ,easy in installation and maintation.
2) Easy to clean and low noise.
3) Stable running and has good wearability.
4) Adopting advanced world famous brand components in pneumatic
parts ,electric parts and operation parts.
Technical Data:
Model | BSC-200 | BSC-300 | BSC-400 | BSC-600 |
Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
Size of input granules (mm) | <100 | <100 | <100 | <100 |
Crushing Fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
Speed of principal axis(rpm) |
960 | 960 | 960 | 960 |
Motor power(KW) | 3 | 5.5 | 7.5 | 11 |
Overall Size(L*W*H) (mm)(Type B) | 900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
Weight(Kg) | 200 | 300 | 380 | 500 |
Good Comment From Customer:
Packaging&Shipping:
*Usually small machines are packed in wooden boxes, we can also
pack according to customers' special requirements.
*If the machine is relatively large, we will use steel wires and
nails to fix the machine in the container. The machine will not
move inside the container.
