    Crawler 13T 700M Pneumatic Drilling Machine

    Ask Lasest Price
    Brand Name : ShiTan
    Model Number : ST800
    Certification : ISO
    Price : USD46000/set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000sets/month
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    Crawler 13T 700M Pneumatic Drilling Machine

    700M Deepth Multifunctional Hydraulic Water Well Drilling Rig


    Hydraulic Water Well Drilling Rig Character:


    Full hydraulic crawler multifunctional drilling rigs are configured with rotation-percussion rotary head or large torque rotation type rotary head as alternative,and equipped with down-the-hole hammer, which is designed for various hole forming operation. It is suitable for different soil condition, for example gravel layer,hard rock,aquifer,clay,sand flow etc. This rig is mainly used for rotation percussion drilling and normal rotation drilling in the project of bolt supporting, slope supporting,grouting stabilization, precipitation hole and underground micro piles, etc.


    This series of rigs uses a crawler chassis for off-road performance. Independent module design, two-speed swing and propulsion speed to meet different drilling requirements in soil and rock formations. The combined positioner can adjust and replace the positioning plate according to different types of drill pipe and impactor to ensure accurate and reliable positioning and centering. The hoisting mechanism facilitates the lifting of the drill pipe and the impactor, reducing labor intensity.


    Technical parameter of Hydraulic Water Well Drilling Rig


    Weight13TDrill pipe diameter102/108/114mm
    Drilling diameter140-400mmDrill pipe length1.5/2/3/6M
    Drilling depth700MRig lifting force30T
    One-time advance length6.6MSwing speed55-120rpm
    Walking speed2.5Km/hSwing torque8850-13150N.m
    Capacitor140kwDimension6.1*2.2*2.9M
    Air pressure1.7-3.5Mpa

    For this series of hydraulic water well drilling rig we can produce different deepth and speed that can meet customer demand of different usage


    Product Details


    Hydraulic drilling rig is a kind of portable drilling rig which is widely used. It is suitable for water well drilling, geological investigation, geological core drilling, small grouting hole and blasting hole for railway, water conservancy, bridge, dam foundation and other buildings. Diamond, composite and alloy bits can be selected for drilling according to different strata.


    Main Features


    1. It has hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.

    2. The ball clamping mechanism or hydraulic chuck is adopted to realize the rod reversing without stopping the machine. The operation is convenient, safe and reliable.

    3. Equipped with hole bottom pressure gauge, it is easy to master the situation in the hole.

    4. Compact structure, centralized handle, small occupation area, light weight, strong decomposition, easy to move. It is suitable for plain or mountain operation.

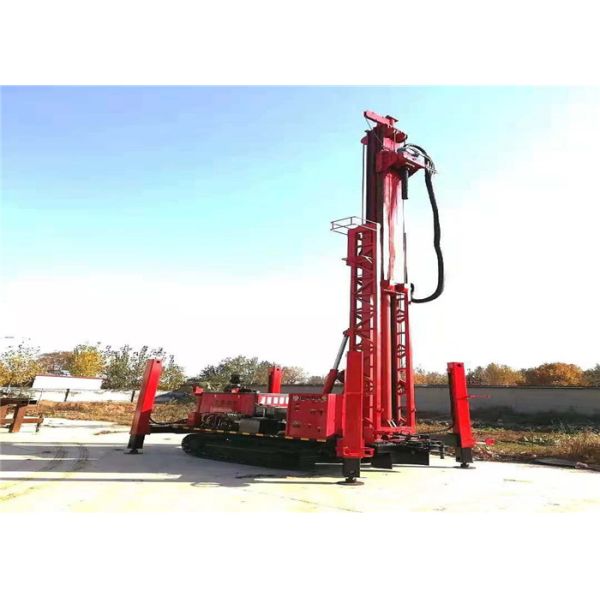

    Quality Crawler 13T 700M Pneumatic Drilling Machine for sale
