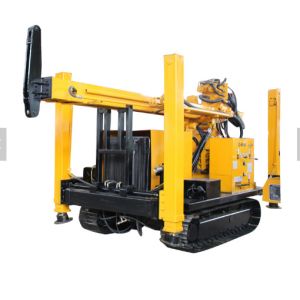

Underground 5T Crawler Pneumatic Borewell Machine

    Buy cheap Underground 5T Crawler Pneumatic Borewell Machine from wholesalers

    Buy cheap Underground 5T Crawler Pneumatic Borewell Machine from wholesalers
    • Buy cheap Underground 5T Crawler Pneumatic Borewell Machine from wholesalers
    • Buy cheap Underground 5T Crawler Pneumatic Borewell Machine from wholesalers

    Underground 5T Crawler Pneumatic Borewell Machine

    Ask Lasest Price
    Brand Name : ShiTan
    Model Number : ST200
    Certification : ISO
    Price : USD46000/set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000sets/month
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    Underground 5T Crawler Pneumatic Borewell Machine

    Underground Stable Performance Crawler Hydraulic Pneumatic Water Well Drilling Rig


    Introduction of Pneumatic Water Well Drilling Rig

    The rig is a light weight,efficient and multi functional drilling equipment,it is mainly applic able to industrial and civil drilling, geothermal drilling, has the advantages of compac tstructure, fast advancing, mobile and flexi blewi deap plication regionetc..It is especially suitable for water in take in mountainous and rocky strata.

    The rig can create jobs in different formations, the max. hole depth of up to 200 meters The rig using a new type of hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder pushing, factory engine to provide power for the hydraulic system, the two stage air filter and air compressor air inlet design, prolong the service life of dieselengine. Convenient pump group design unique repair, reduce repair cost.

    Hydraulic centralcontrol console, convenient operation. The rig adopts a special crawler chassis of engineering machinery, strong crosscountry performance. Module design independently, can make the rig mounted on trucks, increase its mobility.

    Positioner combined, can be adjusted according to the drill pipe and the impact of different types of replacing the positioning disk, to ensure the positioning accuracy, reliable centering.

    Technical parameter
    Drilling Hole Diameter110-202mm
    Drilling Depth180m
    Working pressure10.5-24.6bar
    Air consumption16-30m³/min
    Propeller Shaft Stress0-2.5T
    Lifting power5T
    Pulling Force of Landing Leg Cylinder32T(4 legs)
    Stroke of Landing Leg Oil Cylinder0.4m
    Sliding Plate Stroke2380mm
    Slow Lifting Speed8m/min
    Slow Pushing Speed0-15m/min
    Fast Lifting Speed26m/min
    Fast Pushing Speed51m/min
    Rotation torque4200N.m
    Rotation Speed33-67r/min
    Lifting Power of Hoist1T
    Diesel Engine modelYC4D80
    Engine Power58kw
    Travelling speed0-2.5 km/h
    Climb capacity20°
    Weight4500kg
    Dimension2700*1550*2350mm


    Pneumatic Water Well Drilling Rig Other Details

    Pneumatic Water Well Drilling Rig can be used for drilling in different formations, and the drilling diameter can reach 245-294mm. The drilling rig adopts new hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder propulsion. The famous multi cylinder engine provides power for the hydraulic system. The two-stage air filter and air inlet design of air compressor extend the service life of diesel engine. The unique pump unit design is convenient for maintenance and reduces the maintenance cost. Centralized control of the hydraulic console, easy to operate.

    The series of Pneumatic Water Well Drilling Rig are equipped with crawler chassis of excavator, with strong cross-country performance. Independent modular design allows the rig to be mounted on a truck to increase its mobility. The two-stage rotation and propulsion speed can meet the different drilling requirements in soil and rock strata. Combined positioner can be adjusted and replaced according to different types of drill pipe and impactor to ensure accurate and reliable positioning and centering. The hoisting mechanism is convenient for the hoisting of drill pipe and impactor and reduces the labor intensity.This machine can be used in all kinds of strata, such as water well engineering, geothermal well, anchor pile hole, etc.

    Pneumatic Water Well Drilling Rig has the advantages of hydraulic control of the whole machine, automatic loading and unloading of drill pipe, crawler chassis, high-power diesel engine, hydraulic balance at four corners, and stronger terrain adaptability.

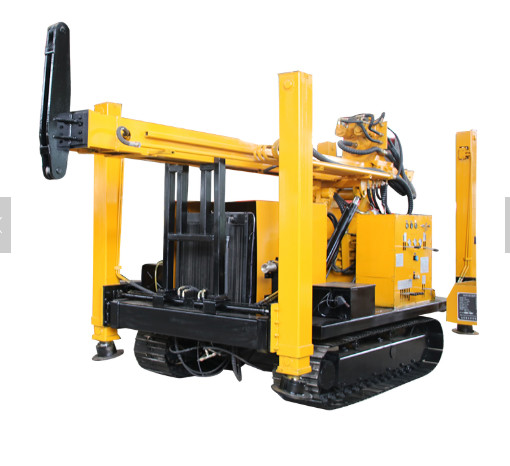

    Quality Underground 5T Crawler Pneumatic Borewell Machine for sale
