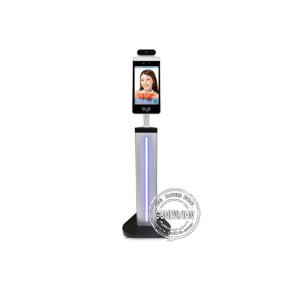

EU Health QR Code Scanner 8" Thermometer Mask Detection Face
Recognition Temperature Measurement
Quick points:
1. 8inch IPS panel
2. Quad core RK3288 Android 7.1 system, 2G+8G memory, with wifi
3. Facial recognition camera inbuilt,support 3W faces
4. German Brand Heimann temperature detector inbuilt
5. Server software with staff working shift setting and attendance
control setting to be provided for free.
6. Support secondary software development based on API document
7. Various kind of installation:wall mount,desk top stand,floor
stand (110cm,65cm,138cm,adjustable stand from 60 to 120cm)
8. 1.1M height floor stand MZJ-080 can be with an 1200Ml auto hand
sanitizer dispenser,liquiad nozzle,fixing via screw very stable.
9. Support logo customized on floor stand, support boot logo
customized, support QR code display standy on screen
10.Support SDK for develope your own software
Launch face recognition solution for the "EU New Crown Digital
Certificate" temperature recognition, and simultaneously completed
the "EU Health Code" identification + body temperature detection +
face mask recognition
To better prevent and control COVID-19 and promote population flow
and economic recovery, the EU certificate (EUDCC, known as a
European vaccine passport) allows EU citizens to flow between
countries. It is released to users in a QR code, including three, a
negative nucleic acid test certificate for recovery after pneumonia
The holders of the EU Health Code are free to enter and leave the
EU countries that recognize the certificate by all 27 member States
of the EU as well as other European countries such as Iceland,
Norway and Switzerland.
The scheme adopts high-performance hardware configuration, with
high accurate face recognition algorithm, support based on infrared
thermal imaging technology contactless rapid temperature screening,
support the identification of EU new crown digital proof qr code,
built-in double channel speaker, voice broadcast, voice reminder,
reduce the risk of close contact infection, supporting perfect
background management system, help new crown epidemic prevention
and control, realize personnel safe and efficient access control.
Description:
8 inch smart pass digital thermometer with facial recognition
camera and temperature scanner is hotsale in 2020, it help people
all over the world to fight against virus.
It can work standalone without internet, just power on and it will
test body temperature automatically when people stand in front of
it, and pass record can be downloaded form the APK itself.
It also can work with internet,we provide free temperature
detection software,it can be installed on local area network
computer or a cloud server, staff pass record can be saved and
donwloaded from the software platform.
Administrator email address can be preset in the software, auto
email will be sent once it test abnormal temperature.
We have different kind of stand for different people,MZJ-082 65cm
height for Children,MZJ-080 110cm for most of people,MZJ-083 1.38M
for higher people
Specification:
| Resolution | 1280*800 IPS panel |
| Display area | 107.64(W)×172.224(H) mm |
| Brightness | 200cd/m2 |
| Number of Color | 16.7M |
| Response time | 8 (ms) approximately |
| Contrast | 800:1 |
| View angle | 170°/170°(H/V) |
| Life Time | > 50000 (hours) |
| Power Supply | DC12V (±10%) |
| Power Consumption | 14W |
| Camera | 2.0Mpx, two-eye dynammic camera |
| Focus distance | 50-150cm |
| White balance | Automatic |
| LED flash | LED and dual IR LED light compensation |
| Speaker | 2.5W/4R |
| Face recognition | Support several face detection together |
| Face recording database | 30,000 at most |
| 1:N face detection | Suport |
| 1:1 face matching | Suport |
| Stranger dection | Suport |
| Face detection distance configuration | Support |
| UI interface configuration | Support |
| Remote upgrade | Support |
| Display interface | Includes device management, personnel/picture management, records
query |
| Deployment model | Support public cloud, private, local area network, standalone |
| Body temperature testing | Support |
| Distance support | 1 Meter |
| Testing precision | ≤ ±0.2℃ |
| Testing range | 10℃~42℃ |
| Thermal imaging field of view | 32 X 32℃ |
| Automatic pass | Support, for normal body temperature |
| Automatic alarm | Support, for abnormal body temperature, can be pre set |
| Waterproof | IP65 |
| Installation | Gate machine, height can be adjusted |
| Photo Formats | JPEG ,BMP ,GIF ,PNG |
| Audio Formats | MP3,WAV,WMA |
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V |
| Shell Material | Aluminum+Metal |
| Bare diemension | 238.24*128*25mm, N.W.: 1.45kg |
| Touch Type | NO |
| Normal Working Temperature | -10°——60° |
| Normal Storage Temperature | -20°——60° |
| Accessory | Cable, bracket |
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic |
| CPU | RK3288 Quadcore Cortex-A17 1.8GHz |
| RAM | DDR3 2G |
| Memory | 8G |
| Internet connetcion | Wifi, RJ45 |
| System | Android7.1 |
| USB port | OTG*1, USB HOST*1 |
| RS232 | 1 |
| Relay output | 1 signal output for door openning |
| Wiggins interface | 26/34 output*1, 26/34 input |
| Upgrade | Support Uboot upgrade |
Application:
This smart 8 inch temp scanner screen can be widely used in bus,
school, airport, subway station and train sation, can work together
with passage gate entrance access controller in community, office
building, hotel, scenic spot, transportation junction or other
public service area
