Factory Outlet Double Girder Electric Overhead Travelling Overhead
Bridge Crane 5 Ton 10 Ton 20 Ton
1.Brief introduction:
1). The operating room of the double-beam bridge crane is divided,
closed and insulated.
2). There are three types of double beam bridge crane control room
platform entrance bifurcation, end and top surface.
3).H. The height that can be increased for the cart.
4). The double-beam bridge crane is divided into indoor and indoor
two types. The technical requirements such as the highest and
lowest temperature of the working environment and the type of power
supply should be indicated when booking.
5). The overload limiter, large screen display and various
protection devices are added to further increase the safety during
use.
6). The aerial operation method generally adopted by double girder
bridge cranes is different from other ground cranes.
Air operation means that there is a separate small operating room
under the crane, while ground operation means that the operator
holds a remote control operation.
2.Product Paramenters
| Loading capacity | 5 ~ 500t |
| Lifting height | 3 ~ 30 m or customized |
| Lifting speed | Customized or vary with the lifting capacity |
| Span | 10.5~31.5 m |
| Lifting mechanism | European hoist, European winch trolley |
| Working class | A5 ~ A8 |
| Working temperature | -20 ~ 40 ℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-36 / 48V |
| Motor protection class | IP54 IP55 IP65 |
| Control way | Cabin, wireless remote, pendant push button. |
| Safety device | Buffer,current overload protection,overload device,power failure
protection |
| Application area | Factory,workshop,warehouse,power station,logstic,etc. |
| Painting color | Yellow,Red or Customzied |
3.Features
The double girder bridge crane is mainly composed of bridge frame,
cart operating mechanism, trolley, electrical equipment, etc.
According to the degree of use, it is divided into three work
levels: A5, A6, and A7. carry out.
Main parameters of double beam bridge crane:
Lifting capacity: 5~10 tons, 16/3.2~50/10 tons, 75/20~100/20 tons,
100/32 tons, 125/30~250/50 tons, 300/40 tons, 350/75 tons, 400 / 80
tons, 600/150 tons
Span: 10.5~31.5 meters, 13~31 meters.
Lifting height: 6-22 meters.

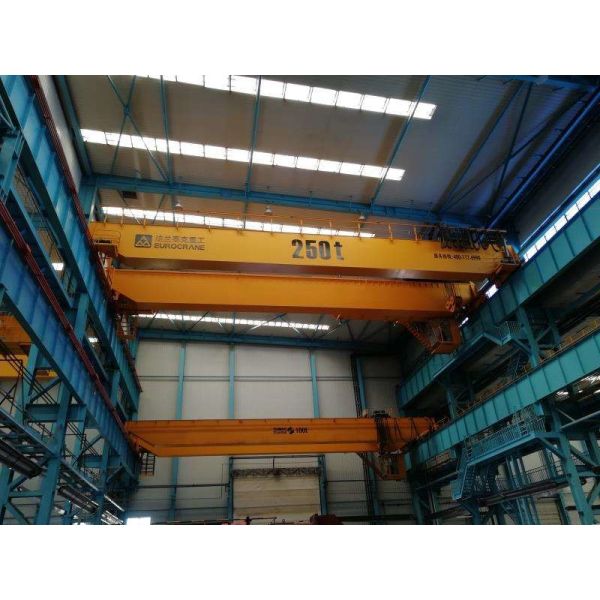

4.Products Show
