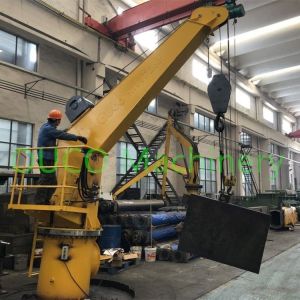

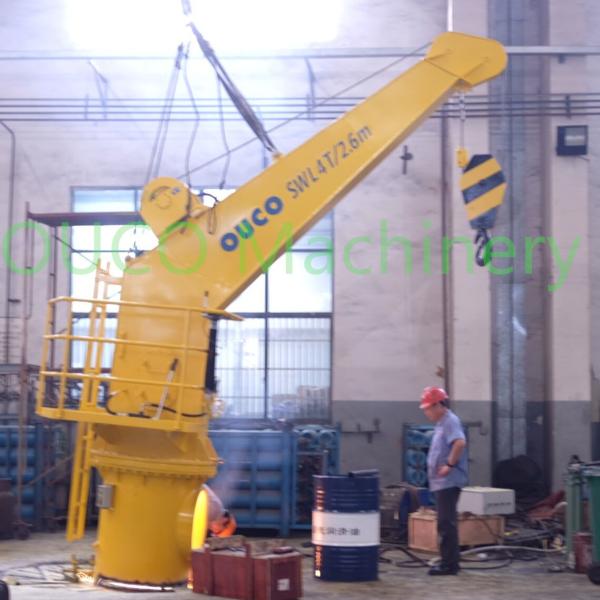

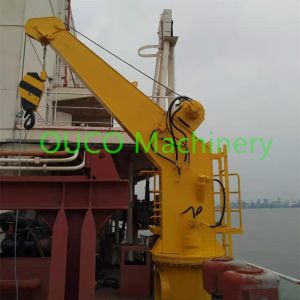

Fixed Boom 4T Pedestal 2.6M Jib Ship Deck Cranes
Product Description
The crane is installed with a rolled steel pedestal for bolting or
welding to deck with a height of OUCO standard and pedestal
diameter is depend on the SWL of the crane. The standard SB crane
will supply with an operator platform. Operator cabin is optional.
The crane and all it associated components / equipment shall be
designed in accordance to any leading classification societies
which is upon request. The crane shall be tested and adjusted ready
for installation by welding or bolting to vessel deck. Power
connection shall be provided for electrical supply through
integrated electrical slip rings.
Specification
| No. | Specification |
| 1 | Working capacity | 4T |
| 2 | Working radius | 2.6 m |
| 3 | Hoisting speed | ~10m/ s |
| 4 | Hoist height | 25m |
| 5 | Slewing speed | 0.8m/ s |
| 6 | Slewing angle | 360º |
| 7 | Working condition | TRIM ≤2° HEEL ≤5° |
| 8 | Hydraulic system | |
| Power | 15 Kw |
| Speed | 1770 r/min |
| Voltage | 440V 60Hz 3 phases |
| PROTECT CLASS | IP 56 |
| INSULATE CLASS | F |
| 9 | Design temperature | -9.9º~45º
|
SB series crane: End User Advantages:
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales searvices support.
GA drawing
Customer visiting us
Our Company
With years of experience, the OUCO Marine Group has its own
designing team and manufacturing factory, excellent European
management who has 47 years of experience on offshore business,
which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane,
telescopic crane, stiff boom crane, non-standard steel structure,
more environmental-friendly operations and also truck crane with
the range from 15t to 150t.Port industry which includes cranes,
hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according
to our own design, but also according to provided designs.
We build products according to any certification requested by the
client and are able to build them for working in, and under extreme
heavy circumstances for working tempertures of - 40C accordingly.
