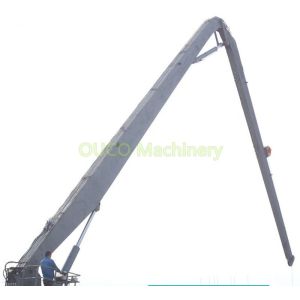

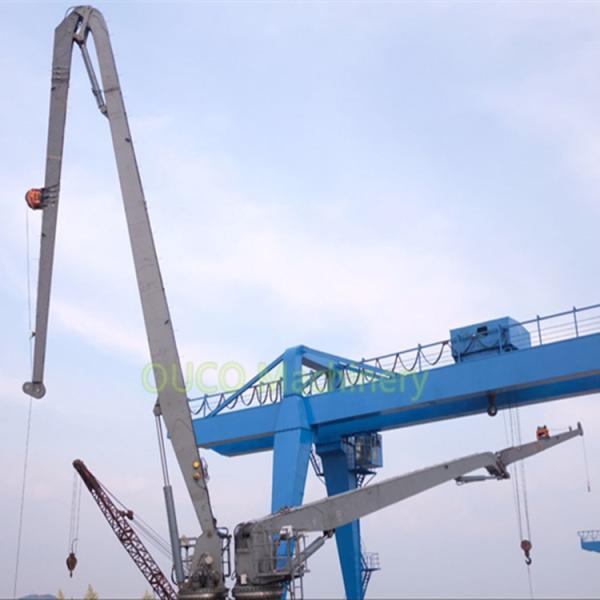

30m Knuckle Boom 1t Wide Shipyard Crane Working Radius
Product Description
OUCO manufactures knuckle boom cranes for use as marine, dock,
shipboard, and offshore cranes. Knuckle boom cranes provide the
highest levels of flexibility and mobility.
We also manufacture combination knuckle boom telescopic cranes.
A knuckle boom crane appears similar to a standard crane, except
that the boom articulates at the 'knuckle' near the middle, letting
it fold back like a finger. This provides a compact size for
storage and manoeuvring.
Knuckleboom cranes have become very common on offshore vessels as
less of the deck space is blocked by the crane. Disadvantages of
this crane type are the higher power demand and increased
maintenance requirement due to the increased number of moving
parts.
Specification
| SWL | 1t30m&2.5t15m |
| Max Working radius | 30m |
| Max Working radius | 4.2m |
| Hoisting height | 28.5m |
| Hoisting speed | 0~15m/min |
| Luffing time | 120s |
| Slewing speed | 0.5r/min |
| Slewing angle | 360° |
| Motor | 30Kw |
| Power supply | 380V,50Hz, 3ph |
| Lifting capacity | 1t/2.5t |
| Working duty | S1 |
| Protection Class | IP56 |
Advantages:
1) Hydraulic type makes the crane maintain easily;
2) Flexibility by extending booms;
3) Smaller ones take very limited space on the
vessel/ship/shipyard;
4) Bigger ones can do heavy duty loads in several working
conditions.
The innovative design of the knuckle boom crane allows workers to
perform great number of logistic tasks. The function of these heavy
duty machines is to load and unload heavy materials from one
location to another. Due to its durable construction technologies
and precision, knuckle boom crane provides an extra solid hand to
any workforce. With its great lifting power, payload space and
maneuverability, knuckle boom crane successfully
General Arrangement
Certification
Our Company
With years of experience, the OUCO Marine Group has its own
designing team and manufacturing factory, excellent European
management who has 47 years of experience on offshore business,
which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane,
telescopic crane, stiff boom crane, non-standard steel structure,
more environmental-friendly operations and also truck crane with
the range from 15t to 150t.Port industry which includes cranes,
hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according
to our own design, but also according to provided designs.
We build products according to any certification requested by the
client and are able to build them for working in, and under extreme
heavy circumstances for working tempertures of - 40C accordingly.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no
problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift
clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide
service and training. Moreover, our best sales can visit your
country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock
protection device.
