1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for
the development of every type and class of LCD, from the design
stage right through to the production phase, while guaranteeing the
highest quality standards.
Our products can be customized for various applications and market
sectors, including (but not limited to): automotive, medical,
building automation, white goods, digital signage, security,
transportation and industrial.

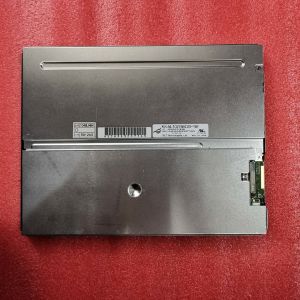

2. NEC NL10276BC20-18F Mechanical Features:
| Panel Size : | 10.4 inch |
|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
|---|
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.0685×0.2055 mm | 0.2055×0.2055 mm [123PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
|---|
| 210.4×157.8 mm | 215.4×161.8 mm | 228×178.5 mm | 8.7±0.5 mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 (W : H) | Landscape type | - |
| Fixation : | Side mounting holes (4-M2) on left, right bezel |
|---|
| Other Features : | Panel Cover | Weight | Surface |
|---|
| - | 380/400g (Typ./Max.) | Clear, Hard coating (3H) |
3. NEC NL10276BC20-18F Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|
| 800 cd/m² (Typ.) | TN, Normally White, Transmissive | 900:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 80/80/80/80 (Typ.)(CR≥10) | 6 o'clock | 3/15 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
|---|
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 38% | 54% | 40% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 40% | 29% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
|---|
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
|---|
| - | Sunlight Readable | - |
4.NEC NL10276BC20-18F Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|
| WLED | Edge light type (Top side) | 5 strings | 5 strings | 70K(Typ.) | Replaceable (104LHS50) |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
|---|
| 50/55mA (Typ./Max.) | 21.2/24.0/27.2V (Min./Typ./Max.) | |
| Interface Features : | Position | Type | WLED Driver |
|---|
| - | Connector | No |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
|---|
| JST | SM10B-SRSS-TB | 1 pcs | 1.0 mm | 10 pins | BLE-10PINS-ACACACACAC |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
