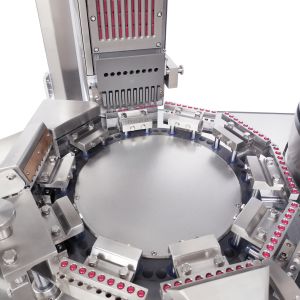

The machine is a full automatic hard capsule filling equipment with
intermittent operation and hole plate filling. It combines the
characteristics of traditional Chinese medicine and GMP
requirements for optimal design, with a compact structure, small
model, low noise, accurate filling dose, full function, smooth
operation and other characteristics. It can operate at the same
time capsule feeding, separating, filling, defect picking, lock,
and cleaning actions, also has the easy cleaning filling parts of
the hoisting mechanism, can meet the needs of enterprises to
realize massive production, greatly saves resources and manpower
input. This machine is the most ideal hard capsule filling
equipment for medicine, health food making enterprises.
Automatic capsule filling machine Made of Stainless steel for all
material contact parts in strict compliance with GMP requirements.
Basic devices:
d. PLC control system integrate with touch screen,PLC
e. one set change part for capsule size :(00#-5#)
f. Liquid ring vacuum pump
g. Dust collector
h. Sensor for machine stop when no powder, no capsule and door open
Technical Parameters
Machine Model | NJP-200 | NJP-400 |
Max. Output | 12000 Capsules/H | 24000 Capsules/H |
Capsule Size | Suitable for filling capsule size 00#-5# Supro/safefy capsule
size:A-E (need to exchange the spare parts/moulds accordingly) |
Dosage Type | Powder/Pellet/Tablet |
Power Supply | 380V 50HZ 3.7KW (Can be made according to the client`svoltage
standard) |
Noise Index | Less than 75dBA |
Machine Size/N.W. | 920mm x 800mm x 1900mm Net Weight: 950KG |
Packing Size/G.W. | 1600mm x 1000mm x 2150mm Gross Weight:1200KG |
Featurs
1. Independently developed and improved internal design of the
rotary table, and adopted the original Japanese linear bearing,
which has higher accuracy and longer service life than the peer
equipment;
2, The CAM underlying design, comparing with peers, we add the
pressure atomization pump, maintain the lubrication of the CAM
groove, greatly reduce wear, which greatly extends the service life
of parts.
3. The upper and lower modules are designed for one-way movement,
and the imported double-lip polyurethane sealing ring has better
sealing performance.
4, the control panel is eye-catching and intuitive, using stepless
frequency control.
5. Based on the lower plane of the gauge plate, the
three-dimensional adjustment mechanism makes the clearance more
even and the loading difference more accurate.
6. Equipped with safety protection device for both people and
machine, and automatic stop device for material shortage, so that
the machine can run more smoothly and safely.
7. The combination of blowing and suction of the module is added to
ensure that the mold hole is clean and dust-free and improve the
success rate of load probability.
8. Independently designed 2 sprocket wheels to drive 2 dividing
boxes. (generally, one sprocket wheel drives 2 dividing boxes in
the same industry), reduced the resistance, Shared the operation
pressure, increased the operation strength, and the failure of the
station is basically zero.
Machine Details
Applications
Pharmaceutical, medicine, and chemicals (powder, Pellet, granule,
pill),also can be used to fill vitamin, foodstuff and animal drug,
etc.
