educational equipment for schools Electrician Trainer Switch Gear Protection Trainer

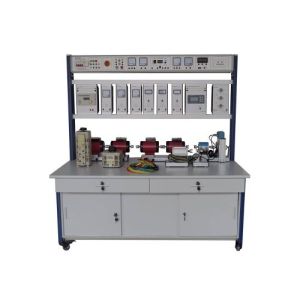

ZE3231 Switch Gear Protection Trainer

Voltage / over voltage protection relay Excitation voltage: 180-240 V

Input voltage (Under/over range): 100-300V Adjustable Current handling capacity: 0-5 A Frequency: 45-60 Hz

All terminals are on front plate. Use for educational experiment purpose.

Under current / over current protection relay with auto re- clCsureExcitation voltage: 180-240 V Under current / over current range: 0-10 A Adjustable Voltage handling capacity: 150-300 V Frequency: 45-60 Hz

All terminals are on front plate. Use for educational experiment purpose.

Under frequency / over • frequency protection relay Excitation voltage: 180-240 V Under frequency / over frequency range: 35-60 Hz Adjustable Voltage handling capacity: 150-300 V

Current handling capacity: 0-5 A

All terminals are on front plate. Use for educational experiment purpose.

Auto Re-closer : 1-0, 230 V, 2 A, 50 Hz, Reclosing Duration : 5-180 Seconds adjustable, Reclose times : 2-10 Adjustable.

All terminals are on front plate. Use for educational experiment purpose :

3- O, 415 V, 3 A, 50 Hz

All terminals are on front plate. Use for educational experiment purpose

Excitation voltage: 180-240 V. 1-0, 230 V, Temperature 10°C-100°C Main Bus 3- cp, 415 V, 10 A, 50 Hz.

All terminals are on front plate. Use for educational

experiment purpose.

3-<|), 415V, 5A All terminals are on front plate.

Use for educational experiment purpose.

All terminals are on front plate. Use for educational experiment purpose

3- O, 415 volt, 5 Amp, 50 Hz

All terminals are on front plate. Use for educational

experiment purpose.

190W, 1380 rpm.400V, 0.7A, 30, 50 Hz, Copper conductor, SS shaft, Aluminum yoke,

All terminals are on front plate. Use for educational experiment purpose.

DC

Motor/Generator Motor Rating: minimum 200V DC, 1.5A, 200W, 1500 rpm Shunt field rheostat (for speed control)

Generator Rating: minimum 150V DC, 0.75A, Shunt field rheostat (for voltage control) Prime mover speed 1500rpm. Copper conductor, SS shaft,

All terminals are on front plate. Use for educational experiment purpose.

Synchronou Motor/ Generator

DC Excitation in rotor circuit winding type: Lap winding, single layer.

Motor Rating: 3 Phase, 415V, 0.5A, 190W, 50 Hz, 1500 rpm or above, Generator Rating: 3 Phase, 415Volt, 172VA, 0.25A, 50Hz, 1500 rpm or above. Copper conductor, SS shaft, Aluminum yoke,

All terminals are on front plate. Use for educational experiment purpose.

Power supply. AC 3 Phase, 4 Wire, Fixed 415V, 230 V 10A, Variable 0- 415V, 4A, DC Fixed: 240V, 10mp or above, Variable 0- 240V, 5A or above All terminals are on front plate, Use for educational experiment purpose.

Mobile work station Wheel mounted, one double size, four full size, three half size module cabinet, One door cabinet with lock, Auto release & sliding tray, Dimension: H x W x D= minimum 60 inch x 36 inch x 21 inch

Supply and installation of Laboratory equipment for Mechanical Technology, Electrical Technology & Automatic Bottle Filling, Labelingn Capping Machine

Use for educational experiment purpose.

Cable length minimum 01 yds. With both & Staking plugs 25 pcs or above.

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Training Room Photo

Company Information

We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today´s and tomorrow´s careers.

Photo for Clients Visiting Factory

Service

We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality.

Certificate
Our products takes ISO9001 product management system.

Jinan Should Shine Didactic Equipment Co., Ltd. is company specialized in manufacture and trading Fluid Lab Equipment, air conditioner trainer, refrigeration trainer, Thermal Lab Equipment, Vocational Training Equipment, Didactic Equipment, Engineering Educational Equipment, Technical Teaching Equipment, for university, college, technical institution, polytechnics. Should Shine products has been exported to America, Asia, Europe, Africa,  Australia.

The Factory, Offices and Laboratories are located in Jinan, China but thanks to its international Commercial Organization Should Shine can supply first rate Products and Services to more than 100 countries in the world, Such as Myanmar, Bangladesh, Yemen, Kazakhstan, Saudi Arabia in Asia, Ethiopia; Algeria, Egypt, South Africa, Kenya, Nigeria in Africa; U.K., Russia, France, Bulgaria, Poland in Europe, Canada, USA, Chile, Costa Rica in America, Australia and Zew Zealand in Oceania. Our company goal is let every school in the world use Should Shine products.

The Company has adopted a Quality System since 2012 and now is certified ISO9001.
