UV-curing optical fiber bundle Customized Ø3mm Ø5mm Ø8mm Ø10mm
Optical Fiber Bundle
Hicorpwell UV-curing optical fiber bundle is used in fast curing of
UV-curing resin or adhesive.
It`s made by quartz fiber with excellent UV transmission
performance.

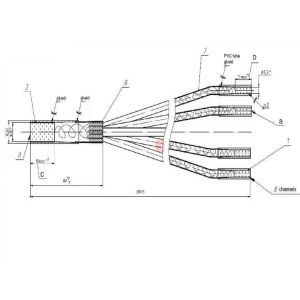

We can produce various branch structures such as 1-in-1-out/
1-in-multiple-out/ multiple-in-1-out/ multiple-in-multiple-out,
and various output form such as circle/square/line, and we also can
provide all kinds of standard or non-standard end structures.
Advantage: wide transmission range, especially on 300nm ~ 1100nm
Hicorpwell ensures the highest quality and best transmission for
fiber optic bundles, while working within the boundaries of your
application.
In order to optimize your bundle, we take several parameters into
consideration: packing efficiency, fiber area efficiency, Numerical
Aperture
optimization, fiber transmission, reflections, and an error factor
(which includes numerical aperture discrepancies).
Our high quality fiber optic bundles can be made with any fiber and
your choice of several configuration and construction
possibilities.
In addition, a number of connectors, including all standard
connectors—or custom ferrules, machined in-house—are available.
In addition, UVNS (UV Non-Solarizing) fibers can be fused at the
ends to eliminate inter-fiber spaces—while maintaining the fibers’
NA
and increasing transmission by 50%. Please see our following Bundle
data sheet for more information about our non-solarizing bundles
for UV applications. We are open for providing the fiber bundles with different fiber
type, bundle diameter, length, connectors
and jackets. Lens collimating or coupling is available.
All bundles and assemblies are custom designed to meet your
specifications. All standard connectors (SMA 905, SMA 906, ST, FC)
are available—or custom ferrules, machined in-house to your
specifications. Refer to individual fiber data sheets for more
information
and to determine the best fiber for your application. NA is
measured at the 95% intensity angle.
We strive to ensure the accuracy of all information provided;
however, we imply no warranties and
disclaim any liability in connection with the use of this
information.
Fiber Bundle Features

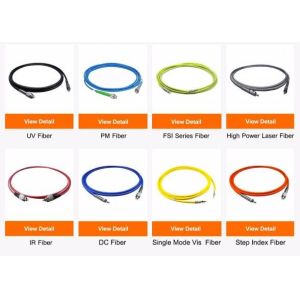

- Fiber materials: Fused silica, hard polymer clad silica, polymer
clad silica, borosilicate glass bundle, ZBLAN & indium fluoride and
plastic (POF)
- Fiber type: Multimode step-index and graded-index fibers,
singlemode fibers
- Numerical aperture (NA): 0.10 to 0.66
- Length up to 100 m, even for multi-fiber assemblies
- Wavelength coverage: options spanning from Deep-UV to MIR (190 to
5500 nm)

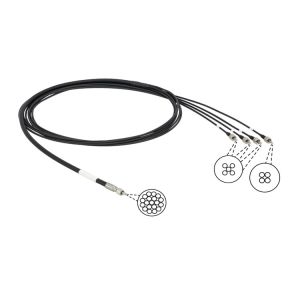

- Straight, bifurcated and multi-branch configurations
- Standard (SMA-905, FC, ST, etc.) or custom connectors, custom
design ferrules
- Custom fiber arrangement (random, scrambled or mapped)
- Fiber coatings can be stripped to improve packing efficiency
- Standard temperature range: -40 °C to + 100 °C; both cryogenic and
high temperature (up to 280 °C) available
- Additional options: high vacuum compatibility, chemical resistance
Benefits
- Design flexibility in light distribution and management
- Greater mechanical flexibility when compared to rigid single large
core fibers
Applications
- Split light from a source into several outputs
- Merge light from several sources into a single output
- Locate equipment away from harsh environments
- Reconfigure the shape of light beam to adapt it to particular
conditions
- Redistribute input light intensity
Industries
- Spectroscopy
- Process control
- Petrochemical
- Aerospace
- Military
- Academia
- Research labs
- Laser power delivery
