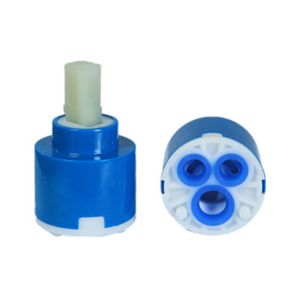

40mm Three Hole Faucet Ceramic Valve Cartridge

China Hot Sell Competitive Price Common Model 40mm Three Hole Faucet Ceramic Valve Cartridge

KAILIF brand ceramic valve cartridge is hot sold at home and abroad.

KAILIF cartridge including: Ceramic Cartridge, Faucet Cartridge, Diverter Cartridge, Ceramic Disc Cartridge, Cartridge with distributor, water-saving cartridge, idling cartridge, reverse cartridge, dual-seal cartridge, Single-seal Cartridge,Tap Cartridge,Side-outlet Cartridge etc.

KAILIF ceramic valve cartridge have been exported to Russia,India,Iran,Egypt,Argentina,Italy,Turkey.

With high quality and good price,KAILIF ceramic valve cartridge get repeat order from our clients every year.

We can also manufacture the ceramic valve cartridge according your request based on the order quantity.

We have technical department to design and make the mold of the ceramic valve cartridge.

Technical Specification

We have clean and comfortable production workshop.Dust-free plant.

We have seasoned and passionated workers to do better work.

We have advanced machines which include injection molding machine,CNC machines,assembly production line,logo printing machine,lift testing machine,water leakage testing machine,packaging machine etc.

We have the most cost-effective faucet cartridge for your choice.

Workers Happy --> Good Quality --> You are happy --> We are happy!

Material properties

The high tensile strength of ceramic materials, resistance to deformation, high temperature resistance, low temperature resistance, wear resistance and non-corrosion characteristics determine the excellent sealing performance of ceramic materials. The ceramic valve core makes the faucet not easy to leak water droplets, and also achieves the purpose of environmental protection and water saving

High quality faucet valve ceramic disc ensure the stable quality and high performance for the faucet valve ceramic cartridge.

The ceramic disc is 95% Alumina Porcelain

Working Principle

When the rotor core is rotated, the fork at the lower end of the rotor core drives the valve disc to rotate, so that the water outlet hole on the moving valve disc and the water inlet hole on the static valve disc correspond to each other, and finally the water flows out from the through hole on the rotor core, This design is widely used in the faucet outlet.

The ceramic spool includes a spool shell installed in the faucet. A spool is inserted in the spool shell. The lower end of the spool is clamped on the moving valve plate by a shift fork. The moving valve plate and the static valve plate are fitted to each other. The static valve plate It is fixedly installed in the valve core shell, and a pressure piece and a sealing pad are also installed below the static valve piece. The static valve piece is provided with two opposite water inlet through holes, and the movable valve piece is opened with the water inlet through hole. Corresponding to the water outlet through hole, the rotary core is provided with a through hole consistent with the direction of its central axis.

Each inner white box pack 50pcs

300pcs faucet ceramic cartridge pack into one cartron.

Container loading faucet valve ceramic cartridge

FAQ

Q1.How many years quality guarantee for your faucets?

we provide 3-5years qualiy guarantee.If any defective is confirmed to be caused by us, Substituation or repair part will be sent in the next order.

Q2. What is your MOQ?

1000PCS each model,trial order for mixing items is also warmly welcomed.

Q3.Can we get some samples for test?

Sure, samples are always availabe for you. But you have to pay for the sample charge and freight charge.

Q4.Can your factory print our logo/brand on the product?

Our factory can laser print customer’s logo on the product with the permission from customers.Customers need to provide us a logo usage authorization letter to allow us to print customer's logo on the products.

Q5. Which areas do you export?

Our main market is in South Europe, East Europe, West Europe, South America, Middle east, Asia and Africa.

Q6. Does your factory have the design and development capabilities, we need the customized products?

The staffs in our R&D department are well experienced in the faucet industry, with more than 10 years experience. We can make customized products especially for you; please kindly contact us for more details.

Q7. How is your factory production capability?

We has a Full production line including Casting Line, Machining Line, Polishing Line and Assembling line. We can manufacture products up to 3000000 pcs per month.

For more.

Please contact us

Whatsapp/Wechat/Mob:+86-13738539388

Email:mickeylin@ctzkaili.com

Taizhou KAlLI Ceramic Cartridge Co, Ltd. is a professional manufacturer of Disposable Protective Goggles and other Disposable Medical Supplies,We are equipped with advanced production facilities and has qualified technicians and senior managers. We owns its own molding department with CNC, milling machines. 29 sets of injection machines and an automatic UV spray line make us strong capacity. Under strict processing control and advanced technology, we have gained trust and recognition from customers in the markets of South America, Southeast Asia,Mid East, Central America, Northern Europe, Southern Europe, South Asia because of our high quality products, competitive prices and the professional services.

besides,we are a professional manufacturer of ceramic Cartridge. Ceramic Cartridge design, development, production and sales In one of the Ceramic Cartridge business. The company is located in Jinqing Town, east of Luqiao district of Taizhou city Zhejiang province China, east of the China East Sea, the elegant environment, Convenient transportation, the company covers an area of 30 acres and currently employs more than 100 people, the current annual output of more than 20 milion sets. Products in strict accordance with the people Republic of china GB18145-2014 standard implementation of the production,100%
of the high and low gas pressure through the pertormance test. With a sound quality inspection system and Quality assurance capabilities, strict implementation of ISO quality management requirements.
Has been the French ACS, Germany KTW, the European CE and other foreign certification.
And actlvely learn to integrate into the scale of domestic and foreign enterprises advanced management concepts and management models. Striving for a modern first-class corporate image.
