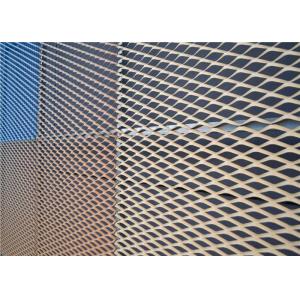

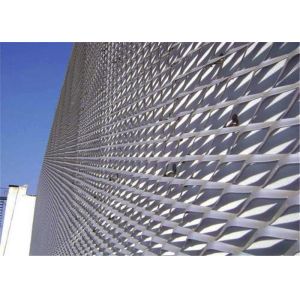

Curtain Wall Decorative Metal Expanded Decorative Metal Mesh
Expended metals mainly applied as platforms and stair treads for
constructions, vessels bridges and boilers. They are also used as
reinforcement for light construction materials and concrete pouring
on all type of vehicles and air-compressors, safety guards for
gear-drive equipment on various kinds of machines.
| Specifications of Expanded Metal Mesh |
| Thickness(mm) | SWD(mm) | LWD (mm) | Wire Stem Width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1.0 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2.0 | 0.73 |
| 0.6 | 10 | 25 | 1.0 | 0.6 | 2.0 | 1.0 |
| 0.8 | 10 | 25 | 1.0 | 0.6 | 2.0 | 1.25 |
| 1.0 | 10 | 25 | 1.1 | 0.6 | 2.0 | 1.77 |
| 1.0 | 15 | 40 | 1.5 | 2.0 | 4.0 | 1.85 |
| 1.2 | 10 | 25 | 1.5 | 2.0 | 4.0 | 2.21 |
| 1.2 | 15 | 40 | 1.1 | 2.0 | 4.0 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4.0 | 2.77 |
| 1.5 | 23 | 60 | 1.5 | 2.0 | 3.6 | 2.77 |
| 2.0 | 18 | 50 | 2.6 | 2.0 | 4.0 | 3.69 |
| 2.0 | 22 | 60 | 2.1 | 2.0 | 4.0 | 3.69 |
Benefits of Using Expanded Metal Lath:
Stronger finished sheet products with lighter weight;
Suitable for decoration due to the variety of pattern types;
Versatile metal mesh allows light, heat and air through, while
retaining its strength forming a very strong barrier for security
purposes.
Expanded Metal Mesh is the most practical and economical way to assure strength,
safety, and anon-skid surface. Expanded metal grating is ideal for
use on plant runways, working platforms, and catwalks, as it is
easily cut into irregular shapes and can be installed quickly by
welding or bolting.
