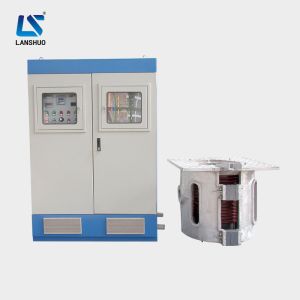

KGPS-0.5T/400KW Medium Frequency Induction Melting Furnace for
Metal Melting
1. Brief Introduction of Medium Frequency Induction Melting
Furnace:
Induction electric furnace steelmaking is more in line with
environmental protection requirements,while electric arc furnace
steelmaking produces a large amount of exhaust gas, waste residue
and noise, and has high energy consumption.
An induction melting furnace is an electrical furnace in which the
heat is applied by induction heating of metal.Induction melting
furnace capacities range from less than one kilogram to one hundred
tonnes, and are used to melt iron and steel, copper, aluminium, and
precious metals.
2. Technical Parameter of Large Induction Melting Furnace:
| Model | KGPS-0.5T/400KW |
| Rated Power | 400kw |
| Rated Capacity | 0.5T |
| Matching transformer's capacity | 500KVA |
| Voltage | 380V, 50/60HZ |
| MF Frequency | 2000HZ |
| Medium Voltage | 750V Phase |
| DC Voltage | 500V Phase |
| DC Current | 800A Phase |
| Rated Temperature | 1600°C |
| Closed Loop Water Cooling Tower | LSN-30B |
3. Large Induction Melting Furnace Application:
(1) iron, pig iron, cast iron;
(2) steel, stainless steel, cast steel, carbon steel and bearing
steel;
(3) gold, silver, platinum;
(4) copper, brass, bronze;
(5) aluminum, aluminum alloy;
(6) zinc, lead, tin, magnesium, nickel, titanium.
4. Feature of Large Induction Melting Furnace :
The intermediate frequency induction melting furnace uses induction
heating to heat the metal work-piece itself. At the same time, the
furnace body of the intermediate frequency induction smelting
furnace is made of thermal insulation materials, so the heat loss
is smaller. The non-contact heating of the metal also reduces the
energy loss, and the thermal efficiency is as high as about 75%.
Under the same conditions, it can save energy by 20%-60% compared
with traditional heating equipment. It also greatly reduces the
preheating time before metal smelting. . Since the furnace body
itself does not produce high temperature during the heating
process, the service life of the smelting furnace is prolonged and
maintenance costs are reduced.
The advantage of the induction melting furnace is a clean,
energy-efficient and well-controllable melting process compared to
most other means of metal melting.
medium frequency induction melting furnace heat metal work-pieces
by induction heating method. at the same time,furnace body is made
of thermal insulation materials,heat loss is much less.
the non-contact heating of metal also reduce the energy
loss,thermal efficiency is up to 75%. under the same conditions,it
is much more energy-saving by 20%-60% than traditional heating
equipment, and it also reduces preheating time before metal
melting. During heating process,furnace body itself does not
produce high temperature,so it can prolong melting furnace's
service life and reduce maintenance costs.
