Backpack Drone Detection And Jamming System---Passive
Detection,Recognition,Accurate Jamming,Port
ZD-ZG030/3000/3/1500

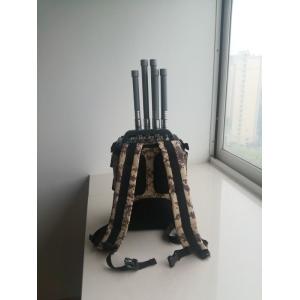

portable drone detection and jamming system---passive detection,recognition,accurate jamming,portable
1.Description
ZD-ZG030/3000/3/1500 portable drone detection and jamming system
consists detection system and jamming system. It can automatically
detect and jam drones. The detection system is passive system with
no dead zone and disruption. It can act advance alert, recognize
enemy and allied drone and accurate jam drones. It is able to
identify unknown drones. The jamming system is portable system with
wide frequency bands, long jamming distance and low power of
environmental friendly RF radiation. The system is convenient for
carry and install. It can be widely used in prisons, important
conference, large rallies and important places to ensure security.
2.Functions
¨ Passive detection:The system doesn’t transmit any electromagnetic
signal. It only passive receives signal so that it has no effect on
the nearby electromagnetic environment；
¨ Accurate recognition:It recognizes type and unique electronic
fingerprint of drone accurately and starts alert；
¨ Alarm:Once detect drones, alarm starts automatically
¨ Search direction:Once alarm start, find the direction of drone by
using handheld direction antenna and direction sensor. Then staff
can aim the accurate direction of drone;
¨Black and white list:It can set black and white list just by one
key, drones in white list will not activate alarm；
¨ Upgrade:The system can be upgraded if new drone bands are
required.
¨ Low jamming power and radiation on user, long jamming distance of
1.5km.
3.Technical specifications
¨ Detection distance:≥3km
¨ Detection bands:900M,2.4G,5.8G(can add bands as requirements)
¨ Detection angle:360°
¨ Jamming bands:5 bands,0.9G,1.2G,1.5G,2.4G,5.8G
¨ Jamming distance:1.5km
¨ Main unit weight:7kg(device weight,backpack and other accessories
are not included)；
¨Main unit dimensions: 380*280*150mm(pure device size,backpack and
other accessories
are not included)；
¨Operation temperature:-10°~+55°C
