Ground Nuts Screw Ground Anchor Antenna Mast Accessories

Ground Nuts Screw Ground Anchor Antenna Mast Accessories

Attentions:

The mast can be extended to any length and securely locks into place by means of a massive clamp. The maximum allowed extended length is marked by a color ring approx. 20cm before the end of each tube. There is no fixed stop which makes it advisable to approach the marking slowly when extending the telescopes.

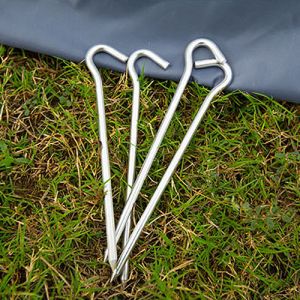

Alumimum pin type ground nut, 20cm

steel ground anchor

These masts are ideally suited for portable applications due to the low weight and the telescopic mechanism. When setting up the mast please pay special attention to the clamping length; the clamping length of the mast must be at least 1/6th of the extended length, or at least 1 meter at the minimum. When extending the mast more than 6 meters measured from the uppermost clamping point additional guys are mandatory.

The tubes are made of weather-proof aluminum alloy. The tubes are tapered by 5 mm and the tube thickness is 2mm. Please refer to the following table for weight and dimensions. The stated additional forces refer to a horizontally applied force at the tip of the extended mast - without guys and a mast clamping length of 1/6th. The calculation includes the inherent load at a wind speed of 50km/h (which is equivalent to a wind force of 7).

also we can produce according to clients special requests, and can give proposals.

Establised at the year of 2008, from begnning, we only produce hand push antenna masts, later on we developed hand winch type mast, and hand winch lattice tower, we focus on the manufacturing light weight, easy to operation mast and towers. They are ideal product to replace the pneumatic tower.

Our products mostly used for home antenna, home decoration lighting, CCTV monitoring, WIFI, and temperoray telecom.

Sometime, clients are looking for tower or mast just for a simple use, but on the market there are always heavey and expensive products, our aim is to fill the gap of small & compact and light weight item for selection.
