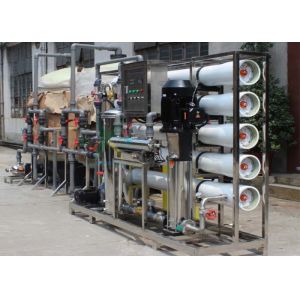

10000L/H SS Industrial RO System Water Treatment Plant For Drinking

Stainless Steel Industrial RO System 10T /H Water Treatment Plant For Drinking /Beverage

Reverse osmosis system is using city water as feed water.

Pre-treatment filters always contain quartz sand filter, activated carbon filter, water softener and security filter. Main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. And pre-filters can also reduce water residual chlorine and pesticide and other harmful pollutions. If raw water in high hardness, we will need to add water softener to protect reverse osmosis membrane.

The basic working principle of reverse osmosis

1. Using a special high-pressure water pump, the raw water is added to a pressure of 6-20 kg, so that the raw water permeates through the reverse osmosis membrane with a pore diameter of only 0.0001 μm under the action of pressure.
2, Chemical ions and bacteria, fungi, virions can not pass, with the discharge of wastewater, only allow water molecules and solvents less than 0.0001 microns to pass.
3. The security filter is equipped with a filter element with a filter aperture of 5μm. These filters filter out any particles larger than 5μm.
4. The more common type of permeable membrane is a polyamide membrane, and the membrane type is a wound composite membrane. The membrane has a salt removal rate of 99.5%.
5, Because the RO membrane is susceptible to the pH value, residual chlorine and water temperature in the water, the RO membrane has strict requirements on the water quality before the operation:
PH value: 3~10
Residual chlorine value: <0.1mg/L
SDI15 value: <5.0
Water temperature: <45 °C

INFRMATION OF THE MACHINE

Some parts function

1.Raw water pump: provide needed pressure for every pre-treatment filter;

2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

Functions:

1. High operation automation degree.

1) Automatic stopping in case of sufficient water under low pressure

a) Protection of hydraulic fluctuation resistance

b) Timed flushing of front filtering materials by automatic controller

c) Automatic flushing of reverse osmosis film by IC microcomputer controller

d) Automatic monitoring of water quality

2. Small landing area, low energy consumption, free of pollution, simple process, high water quality and easy operation and maintenance

3. High removing rate, above 97% for dissolved salts, above 98% for organic substances, and above98% for colloids, bacteria and heat sources etc.

Application

Technical Flowchart of Reverse Osmosis Plant

Untreated water feed pump →Quartz sand filtration→ Active carbon filtration → Precise filtration → Softener→ High pressure pump →RO Membrane system→ CIP system → PLC system → Post Treatment (UV disinfection)

Some parts function

1.Raw water pump: provide needed pressure for every pre-treatment filter;

2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)

Guangzhou Kai Yuan Water Treatment Equipment Co., Ltd Is Executive Director Unit Of China Water Enterprises Confederation Desalination Branch And Member Of Miac(China Membrane Industry Association).

We Are 25 Years+ Full Experience In Pure Water Treatment Equipment Manufacturer. We Has Been Engaged In Water Treatment Product And Technology Development And Utilization.

We Are Specialized In Manufacturing Reverse Osmosis(Ro) System, Seawater Desalination System, Ultrapure Water System, Pure Water System For Gmp Medical And Pharmaceutical, Nanofiltration System(Nf), Ultrafiltration System(Uf), Micron Filtration System(Mf), Ion Exchange System, Edi Systems Etc.

We Can Provide Water Treatment Project Design, Manufacture, Installation And All-Round Service.

Our Company Invests Large Fund And Brains To Research Products To Fit The Demand Of The Market. High Level Research Group, Advanced Apparatus And Good Scientific Atmosphere Ensure The Stable And Reliable Quality, Most Of Our Products Conform To The Requirements Of ISO9001:2008, CE , SGS, It Is Mainly Sold To Pharmacy Company And Health Care Company And Water Shortage Country In Abroad, Due to strict quality management and good reputation, our products have been sold to southeast Asia, Africa, the Middle East, South America and Europe and other countries and regions.

Welcome Customers From All Over The World To Visit Us.
