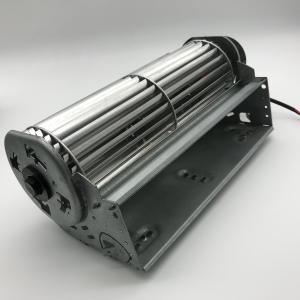

Low Noise Oven 12v Dc Cross Flow Fan / Home Fire-Place Tangential
Blowers
Product Description
Product Name | DC cross flow fan, tangential blower |
Material | Frame : Cast Iron, Impeller: Aluminum |
Function | For cooling and send the air and ventilation |
Package | 1 fan/box, 12box / carton |
1. Material:
Framework: Cast Iron
Impeller: Aluminum alloy
Protection: Impedance Protected
Temperature Range: 0°C~+45°C(up to-50°C~+100°C)
2. Major Characteristic Parameters:
Bearing type: Ball bearing and Sleeve bearing
Rated Voltage: 12V , 24V
Speed: 1100 rmp
Air Flow: 5.3m3/min
Niose Level: 45dB-A
Signal Function: PWM FG RD
Application: widely used in air conditioner, fridge, elevator,
refrigeration equipment, air cleaners, treadmill, air curtain
equipment, laser equipment, dryer, hair dryer, grain combine
harvesters, electric steamers, electronic equipment, machinery and
equipment, stage lighting, fireplaces, exhaust fans, smart home
Industry equipment heat dissipation
3. Expected life:
ball bearing 50,000 hours(40 °c)
sleeve bearing 30,000 hours(40 °c)
4. Dimension:
5. Important Note :
Rated Current : Rated Current shall be measured after 3 minutes of
continuos rotation at rated voltage.
Rated Speed : Rated Speed shall be measured after 3 minutes of
continuos rotation at rated voltage
Start Voltage : The voltage which is able to start the fan to
operate by suddenly switching “ON”
Dropping test standard : Drop a minimum packing box in a height of
30 cm for perpendicular free falling motion to the surface of
wooden plate of 10 cm. After test, connect the fan to the power,
the fan still in normal operation.
6. Specification :
| Model | Size(mm) | Rated voltage (v) | Rated Current (A) | Speed (rpm) | Max Static Pressure (mmAq) | Air Flow (m3/mim) | Air Flow (CFM) | Noise Leve (dB-A) | Weight (g) |
| A | B | C |
| MX65120CUM1 | 120 | 130 | 185 | 12 | 0.8 | 2200 | 8.2 | 2.3 | 81 | 49 | 560 |
| MX65120CUM2 | 24 | 0.45 |
| MX65180CUM1 | 180 | 190 | 245 | 12 | 0.55 | 1500 | 3.8 | 2.7 | 95 | 45 | 650 |
| MX65180CUM2 | 24 | 0.25 |
| MX65240CUM1 | 240 | 250 | 305 | 12 | 0.7 | 1400 | 3.5 | 3.5 | 124 | 43 | 740 |
| MX65240CUM2 | 24 | 0.3 |
| MX65300CUM1 | 300 | 310 | 365 | 12 | 0.75 | 1300 | 3.1 | 4.1 | 145 | 43 | 830 |
| MX65300CUM2 | 24 | 0.35 |
| MX65360CUM1 | 360 | 370 | 425 | 12 | 0.8 | 1200 | 2.9 | 4.7 | 466 | 45 | 920 |
| MX65360CUM2 | 24 | 0.4 |
| MX65420CUM1 | 412 | 412 | 485 | 12 | 0.85 | 1100 | 2.7 | 5.4 | 191 | 45 | 1000 |
| MX65420CUM2 | 24 | 0.4
|
7.Fan performance curse :
The most prominent feature of a cross-flow fan is that the fluid
flows through the fan impeller twice, flows in along the radial
direction, and then flows out along the radial direction. The inlet
and exhaust directions are in the same plane, and the exhaust gas
is evenly distributed along the fan width. Because of its simple
structure, small size, high dynamic pressure coefficient and a long
distance, widely used in laser equipment, air conditioning, air
curtain equipment, dryer, hair dryer, home appliances and grain
combine harvester.
Details Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine
Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
Company Introduction
Shenzhen TOPFAN technology development co., LTD. (Topfanchina) is a
professional manufacturer of dc fans and ac fans of high-tech
enterprises. The cooling fan products can be divided into: DC fan,
AC fan and EC (AC TO DC) fan. According to the wind direction can
be divided into: axial fan, blower fan, cross-flow fan and
centrifugal fan; According to size can be divided into: micro fan,
micro blower fan and industrial fans; According to the function can
be divided into: reversible fan, high temperature fan, waterproof
fan, temperature-control fan, environmental protection fan. Cooling
fans are widely used in automobile, home appliances, network
communication, medical equipment, uav, air purification, monitoring
equipment, chassis, military, LED lighting, office equipment,
mechanical equipment, emerging intelligent products and other
fields
More cross flow fan :
1.What are kinds of cooling fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling
fan, axial fan, blower fan and cross flow fan.
2.What main effects the quoted price for the fan?
Answer: size,bearing type, voltage and speed.
3.Delivery time of sample and bulk order?
Answer: Sample lead time: 5 working days
Delivery lead time: 3-4 working days
Bulk order: at least 12 working days (MOQ: 300PCS)
4. Payment Terms ?
Answer: Payment by T/T.
100% payment for sample orders .
30% deposit and 70% balance before shipment .
5.Delivery ways ?
FedEx, DHL ,UPS,TNT Door to Door service ,By Air ,By Sea ,etc.
