PDLC Privacy Switchable Smart Glass or Privacy Glass Panels for
Building / Office
Description of Switchable Smart Glass:
Switchable Smart Glass, Privacy Glass, or PDLC Glass is a kind of
laminated glass with liquid crystal film sandwiched between two
layers of glass. It uses electro-chromatic technology to
interchange between transparency and an opaque state by applying

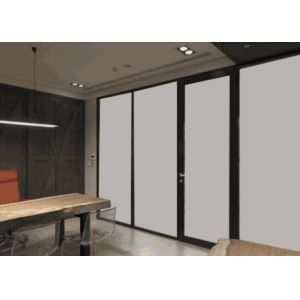

voltage. When the power is turned off, the liquid crystal molecules
in the glass are scattered irregularly, so light cannot pass

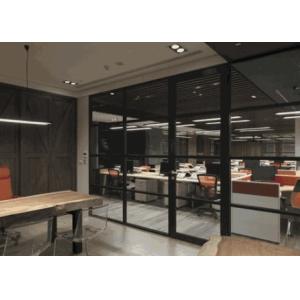

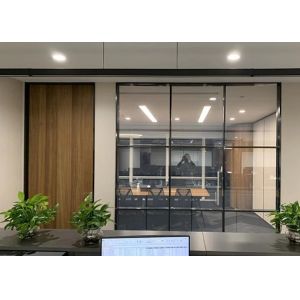

through, and the glass is milky white; When the power is turned on,
the liquid crystal molecules are arranged neatly, and light can
enter, and the glass is transparent. As a new material, it can be
made into various glass doors or partition walls, and widely used
in offices, shop windows, banks, hotels and other places. Smart
glass not only has privacy protection function, but also has all
the application characteristics of safety glass.
Parameter of Switchable Smart Glass:
| Power ON | Power OFF |
| Light transmittance: | Parellel light: | >=66% | <=1.5% |
| Visible light: | Common Film | >=83% | >=55% |
| High Transmittance Film | >=88% | >=57% |
| Haze: | <=3% | >=90% |
| Response time: | <10ms | <200ms |
| Viewing angle: | >=150° |
| Voltage: | Input: | AC220V, AC110V, DC24V, DC12V |
| Operating voltage: | AC48V |
| Threshold voltage: | <=20V |
| Frequency: | Operating frequency: | 30~400Hz |
| Optimum operating frequency: | 50Hz |
| Power consumption: | <=5W/m2 |
| Continued opening time: | >80,000h |
| Continued ON and OFF times: | >80,000,000 |
| Insulation Resistance: | >2M Ω |
| Operating temperature: | Between -10℃ and 65 ℃. |
| Storage temperature: | Between -20℃ and 80 ℃. |
| Thickness: | 0.65mm |
| Max dimension: | Individual piece | <=1.5 * 3.2 meters |
| Roll | 0.93/1.2/1.5(W) x 20/30/50M(L) |
| Adhesion for silicon glue & glass: | 20g/mm |
| Adhesion for PDLC film: | 50g/mm |
Features of Switchable Smart Glass:
- Privacy partition: The biggest function of smart glass is the
privacy protection function, which can control the transparent and
opaque state of the glass at any time, and have a strong spatial
extension effect, privacy, openness, and freedom.
- Sound insulation and noise reduction: The smart film in the middle
of the glass has a blocking effect on noise, and the anti-noise
ability is increased by more than 20% compared with ordinary glass.
- Heat insulation and sun protection: The smart film in the middle of
the dimming glass can insulate and block more than 99% of
ultraviolet rays and 98% of infrared rays. Shield some infrared
rays to reduce heat radiation and transmission. And shielding
ultraviolet rays can protect indoor furnishings from fading and
aging due to ultraviolet radiation, and protect personnel from
diseases caused by direct ultraviolet rays.
- Safety and explosion-proof: The middle-layer smart film can tightly
absorb glass fragments when the glass is hit by high intensity,
effectively preventing glass splashing and hurting people.
- Touch projection: Smart glass is still this very excellent
projection hard screen. In a suitable light environment, if you
choose a high-lumen projector, the projection imaging effect is
very clear and outstanding. (Recommended to use rear projection
imaging method)
Structure of Switchable Smart Glass:
- Switchable Laminated Glass
- Switchable Insulated glass
- Switchable Vacuum glass
- Switchable Fire-rated glass
- Switchable glass window with frame and hardware
- Switchable glass door with frame and hardware
- Switchable Bullet-proof glass
Application of Switchable Smart Glass:
- Privacy / security glazing
- Windows / glass partitions
- Counters / furniture
- Electronic blinds / doors
- Video projection screen
Our competitive:
- Good quality and Fast Delivery
- Professional and Good Service
- Best Service before and after sales
- Best technical support from our professional team with years
experience
- Professional seaworthy wooden crate packing for LCL and client
receive it safely
- Our smart glass could be produced with two methods, with autoclave
and with oven
- Our smart glass has the best transparency when power on , least
haze, and it has a good privacy function when power off
- Both flat and bent smart glass could be provided as per design
request
Other products we provide:
-- Tempered glass, heat strengthened glass, heat soaked glass;
-- Smart glass ( or privacy glass, switchable glass ),
self-adhesive PDLC film;
-- LOW E glass, laminated glass, insulated glass, vacuum glass;
-- Anti-reflection glass, Anti Glare Glass;
-- Decorative Glass;
-- Silver mirror, copper free mirror, LED mirror
About Us:
VALUES GLASS, a continuous growing company, located in Shanghai, China.
Since year of 2005, we stepped on furnish glasses;
Since year of 2010, our ranges are expanded to building glasses;
Since year of 2014, VALUES GLASS in Shanghai is established to meet
business growth;
VALUES GLASS, aim to deliver ADDED VALUE for partners by:
-- Competitive price;
-- Quality products;
-- On time delivery;
-- Efficient communication;
VALUES GLASS, contribute to partners’ success with our expertise & knowhow!
Packaging & Delivery:
Standard export package: Plywood or wooden crate
Corner protector and protective film is available
Crates shall be banded by steel bands
