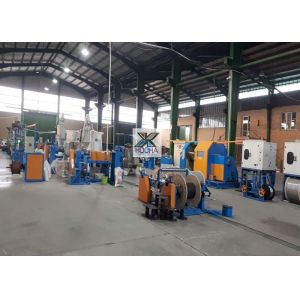

CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery

    Buy cheap CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery from wholesalers

    Buy cheap CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery from wholesalers
    • Buy cheap CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery from wholesalers
    • Buy cheap CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery from wholesalers
    • Buy cheap CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery from wholesalers
    • Buy cheap CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery from wholesalers
    • Buy cheap CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery from wholesalers
    • Buy cheap CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery from wholesalers

    CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery

    Ask Lasest Price
    Brand Name : HH
    Model Number : 50+35/70
    Certification : CE
    Price : 100000
    Payment Terms : L/C, T/T
    Supply Ability : 20 units/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery

    CAT6A S/FTP Cable Making Machine

    Product Description

    1. 50+35 chemical foaming extrusion machine

    Application it is for FOAM PE material to insulate

    Insulated type Solid type low density , middle density, high density polythene. Physical Foam degree can reach to 30-65%
    Copper wire inlet 0.52/0.56
    Insulated core wire OD error

    PE solid insulated wire ±1%

    PE Foam Insulated wire ±2%

    Insulated core wire capacitance average error ±1%

    Foam insulated wire 400m/min

    Central height 1000 mm
    Take up bobbin size PN630

    2.PLC 500 Double Layer Triple Twist Machine

    1.Equipment composition

    1.Upper layer: Single twist back machine

    2.Down layer: Pair twisting machine

    3.Single twist back-twist machine

    External power pay-off

    (1) Applicable drum: Φ500mm*375*Φ56

    (2) Applicable wire: production of insulated core wire

    (3) Applicable wire diameter: Φ0.8mm --- Φ1.5mm

    (4) Wire tension when untwisted: 0.6-3KG

    (5) Maximum linear speed: 130m / min (depending on wire requirements)

    (6) Braking device: motor (Taiwan Wanxin gear motor GV18-200W-5S) and dancing wheel

    (7) Pay-off tension: 0.6-3KG (tension is adjustable)

    Internal rotary horizontal power pay-off

    (1) Applicable drum: Φ500mm*375*Φ56

    (2) Applicable wire: production of insulated core wire

    (3) Applicable wire diameter: Φ0.8mm --- Φ1.5mm; wire tension when untwisted: 0.6-3KG

    (4) Maximum rotating speed of rotating object: 2000RPM, actual use: 1800RPM

    (5) Maximum linear speed: 130m / min

    (6) Power pay-off brake: motor (Taiwan Wanxin gear motor GV18-200W-20S) and dance wheel

    3.PLC 800 Cantilever Cable Twist Machine

    Application:
    It is suitable for the twisting and synchronous winding of insulated core wires such as USB cable, electrical cable, communication cable and data cable etc. This single twisting machine is widely used in various types of wires and cables production process.

    Direction:

    Right hand machine (facing machine, pay off at left hand, take up at right hand).

    Color:

    main color RAL5015 Blue, safety color yellow, electric box is white; (according to customer requirements)

    other details

    Power Supply: 380V 50HZ;

    Compressed Air: 0.4-0.8Mpa;

    Installed Capacity: 32KVA;


    4.70 Jacket Machine(PVC/LSZH)

    Application Apply to PVC,LSZH Plastic extruding,mainly used in different wire in sheathed and together at one time.

    Main specification and Function

    1.Sheathed OD range : 1.5-12.0mm

    2.Extruder capacity :140kg/h (PVC)

    3.Wire concentricity : above 95%

    4.Line speed : According to wire diameter, 300-500m/min

    5.Central Height of machine : 1000mm

    6.Power : 3 phase 380V

    Production Specs Qyt
    1.800 mm Magnetic pay off stand 1 Units
    2.Copper entire straight device 1 Unit
    3.70 extrusion machine 1 unit
    4.Hopper dryer and auto suction machine 1 Unit
    5.1.5 meters movable water tank 1 Set
    6.PLC control panel 1 Unit
    7. Single direction laser gauge tester for cable diameter 1 Set
    8.cooling water tank 1 Set
    9.12 meters accumulator stand 1 Set
    10.Meter devices 1 unit
    11.Double wheels capstan 1 unit
    12.15 KV Sparker 1 Unit
    13.dual take up machine 1 Unit

    5. 305 m/coil packing machine

    The Technical Team
    Hu,machine designer
    Wen,plant engineer
    Chen,senior engineer
    Team of service
    Name
    education
    Position
    Mainly responsible for project
    Specializing in project
    Industry working history ( year )
    zanyang Xie
    college
    General Engineer
    The total project design and planning
    power cable machine
    15
    xioahua Hu
    college
    Vis general engineer
    The total project design and planning
    net cable,data cable machine
    10
    Chnaghong Cheng
    college
    Engineer
    Drawings and after-sales service
    Teflon,Optical fiber cable machine
    25
    xiuwu Chen
    college
    General Engineer
    The total project design and planning
    copper drawing machine
    15
    lixin Yuan
    college
    Engineer
    The project design and planning
    coppwer wire making technical
    16
    zhenghai Qiu
    college
    cable engineer
    After service
    cable making and cable factory management servie
    15
    jinxin Liu
    college
    Marketing engineer
    After service
    electrical engineer
    7
    xingguo Tang
    High school
    Electrical engineer
    After service
    electrical engineer
    10
    changqiang Li
    High school
    Maintain engineer
    After service
    machina maintain and install service
    10
    haipin Li
    University
    Engineering director
    Marketing and sales
    project consulting
    8
    sen Yang
    University
    Engineering translator
    Marketing and sales
    project consulting
    5
    Exhibition
    India Exhibition
    Hooha team participated in the international Wire Exhibition in India to find closer partners and exploit a larger international
    market
    Moscow Exhibition
    Hooha team participated in the international Wire Exhibition in Moscow to find closer partners and exploit a larger internationa
    market
    Tailand Exhibition
    Regional equipment exhibition held in Tailand in 2017
    ShangHai Exhibition
    In 2018, The International Equipment Exhibition was held in Shanghai, where foreign trade companies and suppliers from home and abroad gathered to learn from each other

    Customer Cases
    Hooha team in Algeria to provide technical support
    American customers
    Dubai customers
    Egypt customers
