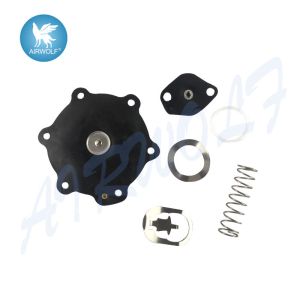

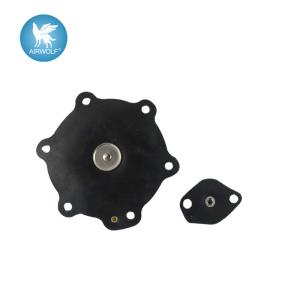

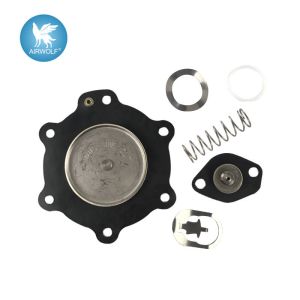

C113827 NBR/FKM diaphragm kit Stainless steel Spring for ASCO
SCG353A047 pulse valve
Ordering Code: C113827
Repair kits for SCG353A047
The high quality diaphragms are reinforced and wear resistant to
guarantee a long operating life, even under harsh conditions
Diaphragm Material: Buna(NBR)
Cover: SS304
Diaphragm kits for: pulse valves:
SCG353A047,G353A065,G353A046,G353A045
Working pressure: 0.05-1.0 Mpa
Working Temperature: -20ºC- +82 ºC
Lifespan:1 million cycles
| Ordering Code | Fitted Valve Code | Valve port size | Material |
| C113443 | G35A041, G353042 SCG353A043, SCG353A044 | 3/4'' , 1'' | TPE / NBR |
| C113444 |
| C113825 | G353A045 | 1 1/2'' | NBR / BUNA |
| C113826 | G353A046 | 1 1/2'' | NBR / BUNA |
| C113827 | SCG353A047 | 1 1/2'' | NBR / BUNA |
| C113685 | SCG353A050, SCG353A051, G353A048, G353A049 | 2'' , 2 1/2'' | NBR / BUNA |
| C113686 | NBR / BUNA |
| C113928 | SCEX353.060 | 3'' | NBR / BUNA |
Reminder: * Diaphragm and pilot inspection should be conducted once
a year. * Ensure that components are completely isolated from
pressure and power before any maintenance activities are performed
on the system. Do not reapply pressure and power until the valve is
fully assembled
FEATURES
• The pulse diaphragm valves are especially designed for dust
collector service applications, combining high flow, long life and
extremely fast opening and closing to produce reliable and
economical operation
• The high flow, angle type bodies, springless construction, in
combination with the special diaphragm assemblies give the unique
operating features required for dust collector service applications
• The design with integral compression fittings will facilitate
installation because there is no need for threaded piping
• Built-in silencers guarantee noise free operation and avoid
foreign particles entering the valve
• The integral operators are provided with epoxy moulded F-class
coils. Various optional waterproof and explosionproof solenoids for
use in potentially explo- sive atmospheres (gas & dust) according
to Directive ATEX 94/9/EC can be mounted on the same basic valve
(see page 45 till 52)
• /JOUCOMATIC components satisfy all relevant EC directives
High purity Aluminum Alloy casting body, the top of NBR diaphragm,
make the diaphragm has high tensile strength, ageing resistance and
low wear, the electromagnetic pulse valve injection is longer than
that of 1 million or three to five years with no damage.
All high-quality imported finished diaphragm, diaphragm assembly in
the manufacturing process all checks, qualified and then into the
assembly line. Each finished valve is tested by ventilation.
Electromagnetic pulse valve coil is higher than the national
standard grade insulation injection in the protection class is IP65
full filling, full copper enameled wire, coil number higher than
the national standard, ensure the electromagnetic pulse valve 6
million is energized is not damaged, the electromagnetic coil can
rotate 360 DEG in the pulse valve, the junction box can rotate 90
degrees to 4 x can be installed to prevent exposure in the open
when rain enters, greatly facilitate the installation of different
angles.
Introduction
Electromagnetic pulse valve refers to the gas through the valve in
instantaneous once a electrical signal received. Just like pulse
phenomena, it has the change of the short fluctuation. Therefore it
is calls the pulse valve. The Industry standard definition of
electromagnetic pulse valve for electromagnetic pilot valve and
pulse valve together, diaphragm valve controlled by electrical
signals.
