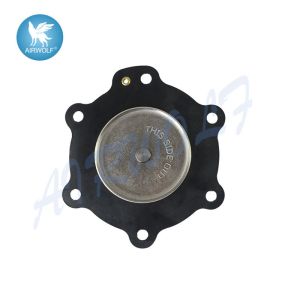

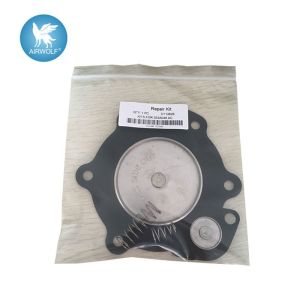

C113826 Diaphragm Repair Kit For Pulse Valve G353A045,G353A046
1.Ordering Code:C113826
2.Repair kits for pulse valve G353A045,G353A046
3.The high quality diaphragms are reinforced and wear resistant to
guarantee a long operating life
4.Diaphragm Material: Buna(NBR)
5.Cover: SS304
6.Diaphragm kits for pulse valves:G353A045,G353A046
7.Working pressure: 0.05-1.0 Mpa
8.Working Temperature: -20ºC- +82 ºC
9.Lifespan:1 million cycles
Material: Nitrile/FKM
Nitrile is for -10~80°C working temperature.
FKM is for -10~200°C working temperature.
We use high quality material , the collection equipment efficiency
can be improved , the energy loss also can be reduced.
Reminder: * Diaphragm and pilot inspection should be conducted once a year.
* Ensure that components are completely isolated from pressure and
power before any maintenance activities are performed on the
system. Do not reapply pressure and power until the valve is fully
assembled.
| Ordering Code | Fitted Valve Code | Valve port size | Material |
| C113443 | G35A041, G353042 SCG353A043, SCG353A044 | 3/4'' , 1'' | TPE / NBR |
| C113444 |
| C113825 | G353A045 | 1 1/2'' | NBR / BUNA |
| C113826 | G353A046 | 1 1/2'' | NBR / BUNA |
| C113827 | SCG353A047 | 1 1/2'' | NBR / BUNA |
| C113685 | SCG353A050, SCG353A051, G353A048, G353A049 | 2'' , 2 1/2'' | NBR / BUNA |
| C113686 | NBR / BUNA |
| C113928 | SCEX353.060 | 3'' | NBR / BUNA |
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT
will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery
cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are
available during production.
5) None delay shipment 5) Loading inspection, and send loading
photos before shipment.
After-sale Service
We can provide a series of after-sale service, such as product
introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item
defective in 3 Month, We will offer replacement without extra
Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We
will contact suppliers or Manufactory for Warranty. Buyers Might
Need to pay the Shipping fee For resend the replaced item.
