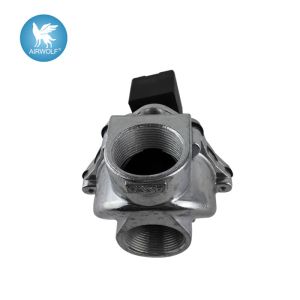

SCG353A051 2 1/2inch integral pilot NBR pneumatic pulse valve
FEATURES
• The pulse diaphragm valves are especially designed for dust collector service applications,
combining high flow, long life and extremely fast opening and
closing to produce reliable and economical operation
• The high flow, angle type bodies in combination with the special main diaphragm assemblies give
theunique operating features required for dust collector service
applications
• The design with integral compression fittings will facilitate installation because there is no need for threaded
piping
• The high quality diaphragms are reinforced and wear resistant to guarantee a long operating
life, even under harsh conditions
• Integral pilot operated valves satisfy all relevant EC directives
ELECTRICAL CHARACTERISTICS
Coil insulation class F
Connector Spade plug (cable Ø 6 - 10 mm)
Connector specification ISO 4400 / EN 175301-803, form A
Electrical safety IEC 335
Standard voltages DC (=): 24V
(Other voltages and 60 Hz on request) AC (~): 24V - 115V - 230V /
50 Hz
GENERAL
Differential pressure 0,35 - 8,5 bar [1 bar = 100kPa]
Ambient temperature range -20 to +85°C
| fluid (✷) | temperature range (TS) | diaphragm (✷) |
| air | -20 to +85°C | CR (chloroprene) |
MATERIALS IN CONTACT WITH FLUID
( ✷ ) Ensure that the compatibility of the fluids in contact with
the materials is verified
Body Aluminium
Core tube Stainless steel
Core and plugnut Stainless steel
Springs Stainless steel
Seals & disc NBR (nitrile)
Diaphragms CR (chloroprene)
Shading coil Copper
ELECTRICAL CHARACTERISTICS
Coil insulation class F
Connector Spade plug (cable Ø 6 - 10 mm)
Connector specification ISO 4400 / EN 175301-803, form A
Electrical safety IEC 335
Standard voltages DC (=): 24V
(Other voltages and 60 Hz on request) AC (~): 24V - 115V - 230V /
50 Hz
| Ordering Code | Port Size | Orifice | Flow Value | Coil type |
| G Threaded | mm | m3/h | l/min |
| SCG353A047 | 1 1/2" | 52 | 46 | 768 | 400425 |
| SCG353A050 | 2" | 66 | 77 | 1290 | 400425 |
| SCG353A051 | 2 1/2" | 66 | 92 | 1540 | 400425 |
| SCG353.060 | 3" | 75 | 170 | 2833 | 400425 |
SUITABLE FOR
Dust collector applications, in particular for reverse pulse jet
filter cleaning and its variations, including bag filters,
cartridge filters and envelope filters, ceramic filters and
sintered metal fibre filters.
High purity Aluminum Alloy casting body, the top of NBR diaphragm,
make the diaphragm has high tensile strength, ageing resistance and
low wear, the electromagnetic pulse valve injection is longer than
that of 1 million or three to five years with no damage.
All high-quality imported finished diaphragm, diaphragm assembly in
the manufacturing process all checks, qualified and then into the
assembly line. Each finished valve is tested by ventilation.
Electromagnetic pulse valve coil is higher than the national
standard grade insulation injection in the protection class is IP65
full filling, full copper enameled wire, coil number higher than
the national standard, ensure the electromagnetic pulse valve 6
million is energized is not damaged, the electromagnetic coil can
rotate 360 DEG in the pulse valve, the junction box can rotate 90
degrees to 4 x can be installed to prevent exposure in the open
when rain enters, greatly facilitate the installation of different
angles.
Drawings:
| Ordering Code | A | B | C | D | E | F | G | H | J | K | L | Weight |
| SCG353A047 | 80 | 50 | 30 | 71 | 130 | 136 | 45 | G 3/8" | 131 | 160 | 178 | 1.40 |
| SCG353A050 | 80 | 50 | 30 | 95 | 168 | 165 | 45 | G 3/8" | 165 | 210 | 227 | 2.90 |
| SCG353A051 | 80 | 50 | 30 | 95 | 168 | 165 | 45 | G 3/8" | 165 | 210 | 227 | 2.60 |
| SCG353.060 | 80 | 50 | 30 | 143 | 240 | 192 | 45 | G 1/2" | 165 | 258 | 275 | 4.10 |
