FLY/AIRWOLF Threaded Valves 200 series integrated VNP206/VEM206
Features
The 200 series is a range of diaphragm valve suitable for dust
collector applications, in particular for reverse pulse jet filter
cleaning of filter bags, cartridges, envelope filter, ceramic
filters and sintered metal fibre filters, The 200 series valve has
the inlet port at 90° to the outlet port. The 200 series range
comprises 7 models, from 3/4" to 3", all with threaded femal gas
connections. The 1 1/2" model is available in the single ans double
diaphragm versions, while the 2", 2 1/2" and 3" are all double
diaphragm valves. The special design assures an extremely fast
opening time, high flow rates and easy installations. The valves
are constructed in die-cast aluminium and have an anodised
pretection treatment which protect them from corrosive and
environmental agents, Bolts and screws are in stainless steel. The
200 series is available in the following versions:
VNP, with integrated pilot
VEM, with remote pneumatic connection
Product Show

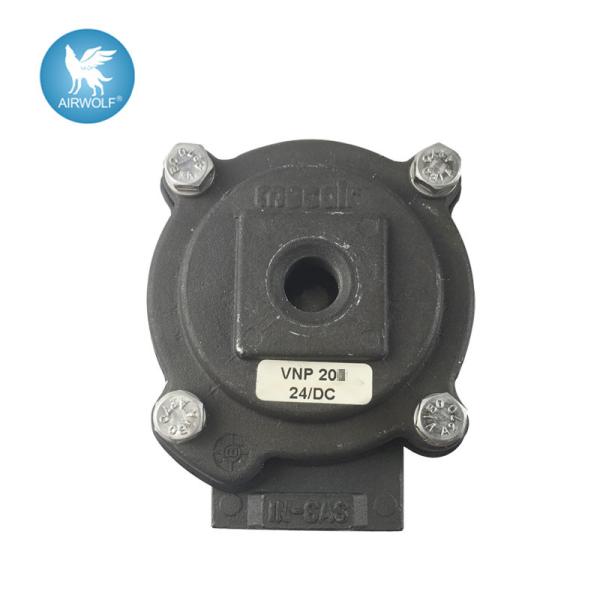

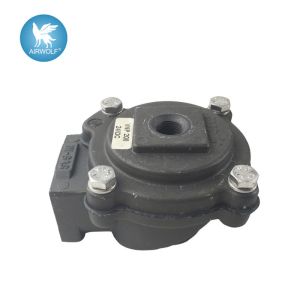

VEM206

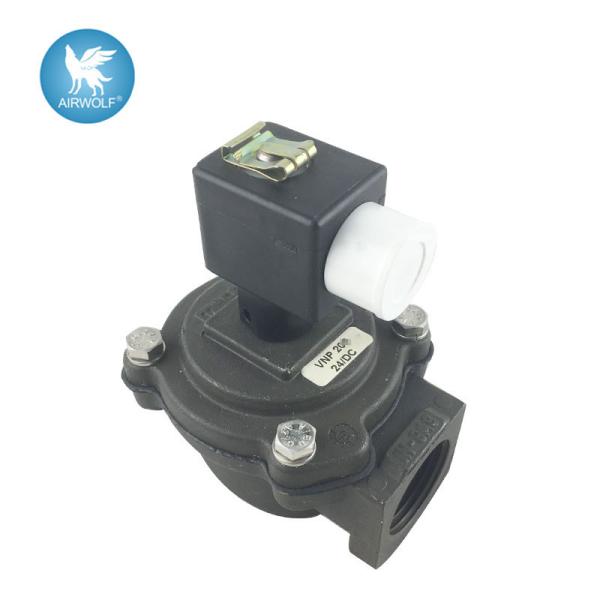

VNP206
Specification
| Fluids | Filtered |
| Diaphragm | NBR: -20~120 ℃ |
| fluororubber: -30~180 ℃ |
| Nitrile: -40~120 ℃ |
| Pressure range | From 0.5 to 7.5 bar |
| Cover | Die-cast aluminium |
| Body | Die-cast aluminium |
| Pilot Base | Brass (Chromed) |
| Pilot | Stainless Steel |
| Diaphragm | NBR |
| Bolts and screws | Stainless Steel |
| Diaphragm Backing disk | Stainless Steel |
| Diaphragm spring | Stainless Steel |

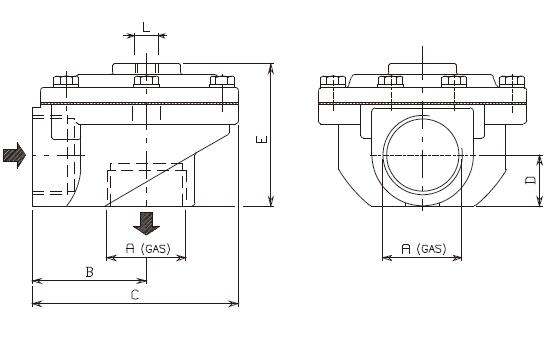

Structure
1. VEM208
2. VNP208
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL
will be normal ways. If you require use of a courier, we can do it.
