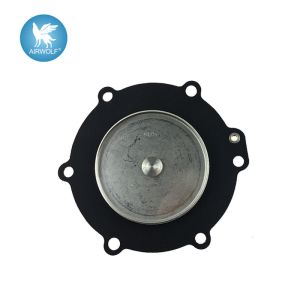

M75 M25 Diaphragm Repair Kits For Turbo pulse solenoid valve With
SS spring
The diaphragms are repair kits for the Turbo pusle valves: FP65,
FM65 , SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN
Technical Parameter
Model: M75 M25
Working-pressure: 0.35--0.85MPa
Ambient Temperature: -5 ~55℃ (fluororubber:-20~232℃)
Relative Humidity: < 85 %
Diaphragm Life: Over One Million cycles
Connection Port: G3"
| Ordering Code | Fitted Valve Code | Valve port
size | Material |
| M20,M25 | FP20 ,FM20, FP25 ,
FM25 ,DP20, DM20,
DP25, DM25, EP20,
EM20, EP25, EM25,
SQP20, SQM20, SQP25,
SQM25, FDP20, FDM20,
FDP25, FDM25, | 3/4", 1" | Nitrile/Buna |
| M40 and M25 | FP40, FM40 , DP40,
DM40 , EP40, EM40 | 1 1/2" | Nitrile/Buna |
| M50 and M25 | FP55, FM55 , SQP50,
SQM50, SQP60,SQM60 | 2" | Nitrile/Buna |
| M75 and M25 | FP65, FM65 , SQP75-IN,
SQM75-IN, SQP100-IN,
SQM100-IN | 3" | Nitrile/Buna |
Description
It's a normal closed double diaphragm dust removal pulse valve.
These valves, used for cleaning filter elements in air filtration
systems, are specifically designed for flat surfaces like square
header tanks and flanged tank. Like traditional model, with
threaded and coupling connection, activating divided into two
types:
Integrated: Electronic control type
Remote: Air control type
A full range of accessory items are available including pilots,
coils, diaphragm, spring.
Advantages:
1. Small resistance, good circulation, expanding the scope of use
of gas pressure.
2. Super Long Life.
Materials:
Valve body: Aluminium Alloy
Pilot: Brass
Coil: Plastic
Seats & Seals: TPE
Turbo has a complete range of pulse valves for dust collector
filters able to meet all customers technical requirement.
Turbo pulse valves are design , with a flexible and long life
diaphragm for a fast opening and closing operation.
The installment introduction:
1. First, Confirm the pulse valve in good condition and then
installed
2. Pulse valve will be installed directly the outer wall of flange
of gas manifold. The spray pipe across the gas manifold. According
to the drawing and manual, the pulse valve matching appropriate
spray pipe and installation. To avoid the valve install in the air
manifold bottom. If the pulse valve matched trachea and connector,
the connector will be used for sealing purpose only. It can not as
structural support components. It can not rely on the straight
connector fixed spray torch and package. The spray pipe and air
manifold must be fixed independent.
3. To tighten the hard nut, the maximum torque of 20 N*m.Tighten
the trachea, torsion of 20 N*m.
4. The connection control wire needs connect of every electric
control valve seat. Pay attention to the line adown to prevent rain
waterproof. Or through the joint and nylon pipe, it will connect
the pulse valve and electromagnetic assembly boxes of nylon pipe
connection.
5. To ensure that provide compressed air clean and dry. The air
manifold system provides moderate pressure and check for leaks
installation. ( it can brush on soap and water, check whether the
interface is bubble). Pressure was carried out on the air bag
inflated (pressure of the valve is around 0.03 ~ 0. 86 mpa),
recommend for air pressure 0.8 mpa maximum
6. Testing the pulse valve blowing, listening all the pilot valve
whether it is normal operation and whether the pulse blowing sound
is clear.
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL
will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
| Our product features | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product
introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item
defective in 3 Month, We will offer replacement without extra
Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We
will contact suppliers or Manufactory for Warranty. Buyers Might
Need to pay the Shipping fee For resend the replaced item.
