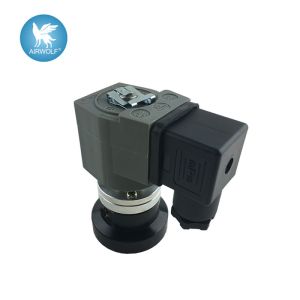

RCA3DS RCA3DS-300 1/8" Pilot Operated Diaphragm Valve

RCA3DS RCA3DS-300 1/8" Solenoid Pilot valve pulse dust collector control valve

Suitable for
RCAC20T3, RCAC20ST3,
RCAC20DD3, RCAC20FS3,
RCAC25T3, RCAC25DD3,
RCAC25FS3 dust collector valves only.

Installation
Ensure o-ring is in place on diaphragm valve cover. Gripping the shroud, hand tighten 3DS pilot valve onto cover of diaphragm valve. For reliable
operation, ensure supply voltage is within -10% and +15% of rated solenoid voltage. Solenoid is free to rotate on pilot valve. 3DS thread will suit 1/8 BSP T, 1/8 BSP P and 1/8 NPT ports. Replace pilot components within 1 million cycles (refer to Spare Parts).

Construction
Body: AI 2011-T3
Ferrule: 302 SS
Armature: 430FR SS
Encapsulation: PA-6
Insulation: Class B/130 ° C
Seals: Nitrile
Shroud: PA-6

Operation
Recommended
on time range: 50-500ms
Recommended time
between pulses: 1 minute or greater

Product pictures
